MatchcodeFN091-SDS.7Q.V5P1Item number ZV-161365 |  |
|---|---|
| Product group | Axial fan |
| Model | Standard |
| Design | Refrigeration technology |
| Name | |
| Blade series | FN |
| Fan series match code | FN091-SD_.7Q.V5P1 |
| Blade diameter [cm] | 91 |
| Motor technology | AC |
| Rated voltage UN [V] UN [V] | 3~400 +/-10% / 3~460 +/-10% |
| Rated frequency fN [Hz] | 50/60 |
| Input power P1 [kW] | 2,2 |
| Rated current IN [A] | 4,8/3,0 / 6,0/3,9 / 5,8/3,8 |
| Rated speed nN [min-1] | 940/820 / 1060/820 / 1100/900 |
| Current rating increase Δ I [%] | 10/15/15 |
| Controlling starting current IA [A] | |
| Operating capacitor C400V [µF] | |
| Thermal class | THCL 155 |
| Minimum permissible flow medium temperature [°C] | 10000 |
| Maximum permissible flow medium temperature [°C] | 80 |
| Electrical connection | Junction box |
| Sound pressure level LpA or LwA [dB(A)] | 75-93 |
| Number of wings | 5 |
| Rotor | Aluminium |
| Wall ring plate | |
| Conformity | ErP 2015 |
| Weight [kg] | 53,3 |
| Airflow direction | V |
| Model | S |

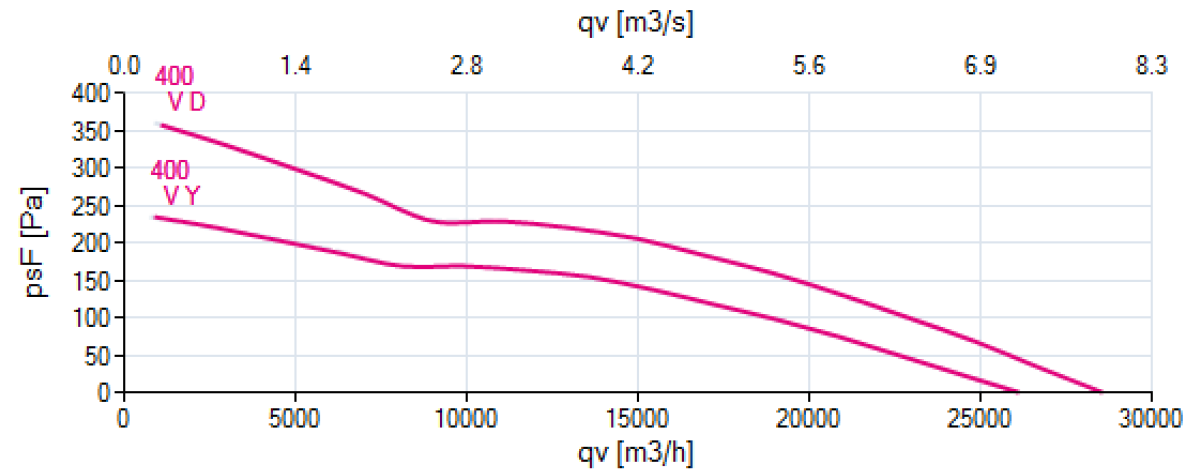

| Max. volume flow qv, (where psf = 0 Pa) [m³/h] | 28000 |
| Max. pressure psf [Pa] | 230 |
| Max. volume flow qv [m³/h] (at max. psf [Pa]) | 10000 |
 | |
