Process air fans from Ferrari (KTL lacquered)

Centrifugal fans
Type Process air fans Ambient use Dusty air and pneumatic transport direct = direct drive belt = belt drive	FA-R, FC-FE-FG/P (FG-N = direct) (FC-P = direct) (FC-N = direct) (FA-R = belt) V = 0,11 ÷ 6,3 m³/s (396 to 22.680 m³/h) Pt = 540 ÷ 19180 Pa	K-KA-KB-KC-KM (KA-P = direct) (KM-R = direct) (KB-P = belt) V = 0,1 ÷ 21,2 m³/s (360 to 76.320 m³/h) Pt = 314 ÷ 16680 Pa
Type Process air fans Ambient use Dusty air	MEC (MEC-N = direct o. belt) V = 0,10 ÷ 67 m³/s (360 to 241.200 m³/h) Pt = 395 ÷ 5780 Pa	VCM-ART (ART-N = direct) (VCM-N = direct or belt) V = 0,11 ÷ 63 m³/s (396 to 226.800 m³/h) Pt = 540 ÷ 19180 Pa	FS V = 0,1 ÷ 35,5 m³/s (360 to 127.800 m³/h) Pt = 117 ÷ 2934 Pa
Ambient use Clean or slightly dusty air	FC-FE-FG-FI-FP/N (FE-N = belt) (FP-N = belt) V = 0,07 ÷ 13,2 m³/s (252 to 47.520 m³/h) Pt = 980 ÷ 24000 Pa	FQ (FQ-R = direct) (FQ-N = belt) V = 0,10 ÷ 80 m³/s (360 to 288.000 m³/h) Pt = 395 ÷ 7850 Pa	FR-TFR V = 0,16 ÷ 110 m³/s (576 to 396.000 m³/h) Pt = 117 ÷ 3925 Pa	DFR-DFM V = 0,71 ÷ 180 m³/s (2.556 to 648.000 m³/h) Pt = 117 ÷ 6870 Pa
Type Built-in centrifugal fans (plug fans) Ambient use For small installation spaces, clean or slightly dusty air					PFB / PFM / PFE V = 0,1 ÷ 21,2 m³/s (360 to 76.320 m³/h) Pt = 314 ÷ 16680 Pa

Axial fans
Ambient use Extraction of air, vapours and gases	EFR V = 0 ÷ 65 m³/s (0 to 234.000 m³/h) Pt = 0 ÷ 3500 Pa	ES and ES/H V = 0 ÷ 112 m³/s (0 to 403.200 m³/h) Pt = 0 ÷ 2000 Pa
Ambient use Welding fume extraction, gases, vapours, etc.	EK, EQ and EP V = 0 ÷ 2,8 m³/s (0 to 10.080 m³/h) Pt = 0 ÷ 200 Pa
Ambient use Transport of polluted air or higher temperatures	EF and EF/H V = 0 ÷ 112 m³/s (0 to 403.200 m³/h) Pt = 0 ÷ 2000 Pa

Centrifugal fans (radial fans)
fans at manufacturer prices
(on request up to 5 MW)
Protection class >IP65
Surface KTL lacquered: good corrosion protection - also on edges and cavities, formable, impact and scratch resistant, coating also suitable for simple repairs on site
Special steel: weatherproof structural steel / high-strength structural steel

Areas of application

Agriculture
Textile
Ceramics, bricks
Dust collection and filters
Energy and environmental industry
Pharmaceuticals and chemicals
Cement, asphalt
Oil, gas power plants
Food, mills
Marine
Painting plants
Wood
Tobacco
Filter plants
Metal industry
Burners
Paper, nonwovens
Glass
Assembly companies


      High pressure radial fans with backward blades impeller

        FA-R, FC-FE-FG/P

    FA-R (PDF)

    FC-P (PDF)

    FE-P (PDF)

    FG-P (PDF)

      Open radial blade fans suitable for pneumatic transport

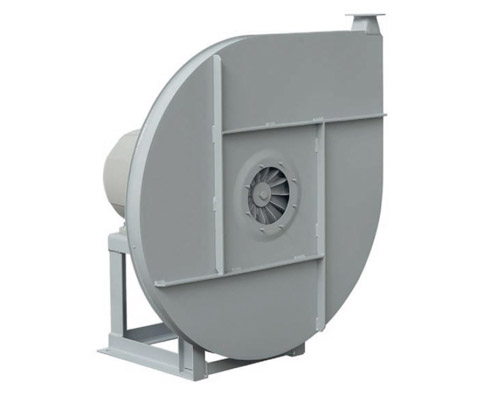

        K-KA-KB-KC-KM

    K (PDF)

    KA (PDF)

    KB (PDF)

    KC (PDF)

    KM (PDF)

      Backwards blades impeller radial fans

        MEC

    MEC (PDF)

        VCM-ART

    VCM-ART (PDF)

      High pressure radial fans with forward blades impeller

        FS

    FS (PDF)
