MatchcodeFB045-4EL.4F.A4PItem number ZV-131872 |  |
|---|---|
| Product group | Axial fan |
| Model | Standard |
| Design | with sheet metal blades |
| Name | |
| Blade series | FB |
| Fan series match code | FB045-4E_.4F.A4P |
| Blade diameter [cm] | 45 |
| Motor technology | AC |
| Rated voltage UN [V] UN [V] | 1~230V +/-10% |
| Rated frequency fN [Hz] | 50 |
| Input power P1 [kW] | 0,48 |
| Rated current IN [A] | 2,1 |
| Rated speed nN [min-1] | 1325 |
| Current rating increase Δ I [%] | |
| Controlling starting current IA [A] | |
| Operating capacitor C400V [µF] | |
| Thermal class | THCL 155 |
| Minimum permissible flow medium temperature [°C] | |
| Maximum permissible flow medium temperature [°C] | 70 |
| Electrical connection | Junction box |
| Sound pressure level LpA or LwA [dB(A)] | 73-77 |
| Number of wings | 4 |
| Rotor | Aluminium, 1-coat lacquer, deep black |
| Wall ring plate | round |
| Conformity | ErP 2015 |
| Weight [kg] | 11.8 |
| Airflow direction | A |
| Model | L |

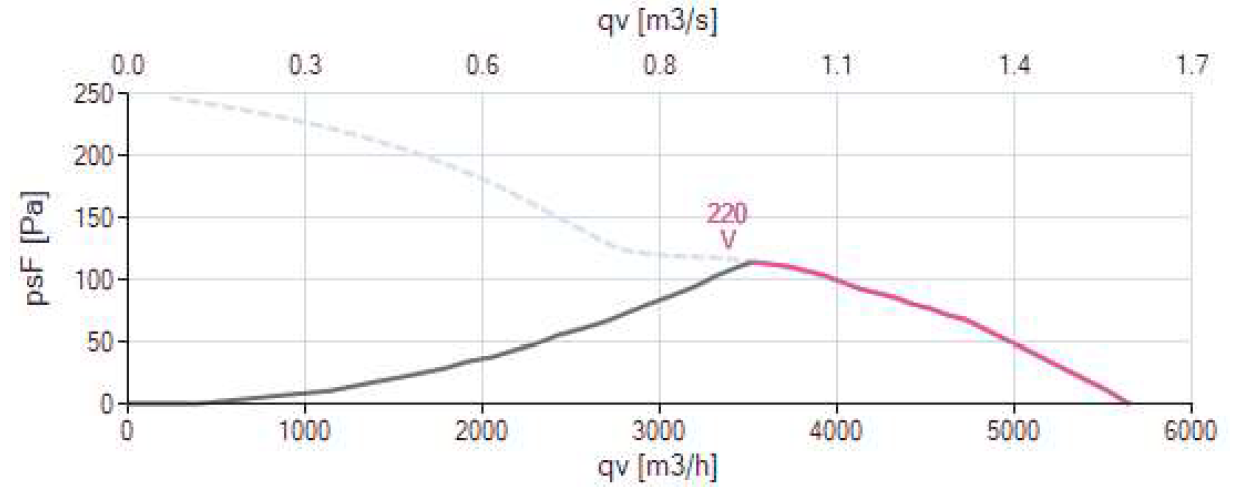

| Max. volume flow qv, (where psf = 0 Pa) [m³/h] | 5600 |
| Max. pressure psf [Pa] | 110 |
| Max. volume flow qv [m³/h] (at max. psf [Pa]) | 3500 |
 | |
