MatchcodeFN030-4ED.WC.A7Item number ZV-141631 |  |
|---|---|
| Product group | Axial fan |
| Model | Standard |
| Design | |
| Name | |
| Blade series | FN |
| Fan series match code | FN030-4ED.WC.A7 |
| Blade diameter [cm] | 30 |
| Motor technology | AC |
| Rated voltage UN [V] UN [V] | 1~230 |
| Rated frequency fN [Hz] | 50 |
| Input power P1 [kW] | 0,09 |
| Rated current IN [A] | 0,39 |
| Rated speed nN [min-1] | 1290 |
| Current rating increase Δ I [%] | |
| Controlling starting current IA [A] | 0,63 |
| Operating capacitor C400V [µF] | 2 |
| Thermal class | THCL 155 |
| Minimum permissible flow medium temperature [°C] | |
| Maximum permissible flow medium temperature [°C] | 60 |
| Electrical connection | |
| Sound pressure level LpA or LwA [dB(A)] | 54…64 |
| Number of wings | 7 |
| Rotor | Aluminium, 1-coat lacquer, black |
| Wall ring plate | Sheet of metal |
| Conformity | ErP 2015 |
| Weight [kg] | 5,8 |

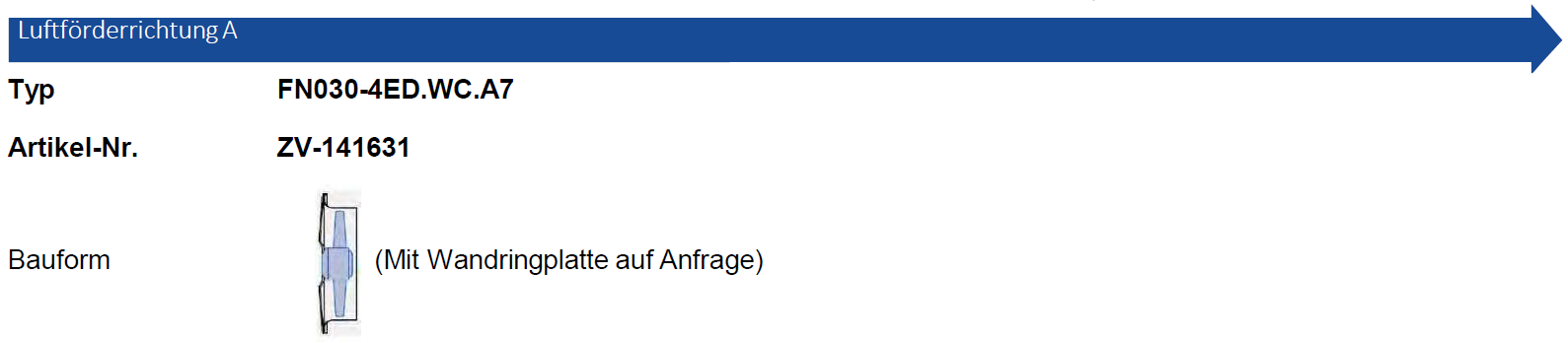

| Airflow direction | A |
| Model | With wall ring plate by request |

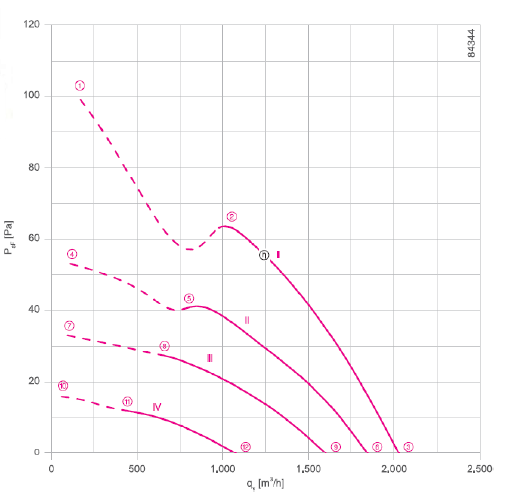

| Max. volume flow qv, (where psf = 0 Pa) [m³/h] | 2050 |
| Max. pressure psf [Pa] | 63 |
| Max. volume flow qv [m³/h] (at max. psf [Pa]) | 1000 |
 | |
