MatchcodeFN045-ZIT.DC.A5P4Item number ZV-184896 |  |
|---|---|
| Product group | Axial fan |
| Model | Standard |
| Design | |
| Name | Ecblue |
| Blade series | FN |
| Fan series match code | FN045-ZI_.DC.A5P4 |
| Blade diameter [cm] | 45 |
| Motor technology | EC |
| Rated voltage UN [V] UN [V] | 1~200-277 |
| Rated frequency fN [Hz] | 50/60 |
| Input power P1 [kW] | 0,76 |
| Rated current IN [A] | 3,9-3,3 |
| Rated speed nN [min-1] | 1650 |
| Current rating increase Δ I [%] | |
| Controlling starting current IA [A] | |
| Operating capacitor C400V [µF] | |
| Thermal class | THCL 155 |
| Minimum permissible flow medium temperature [°C] | |
| Maximum permissible flow medium temperature [°C] | 60 |
| Electrical connection | |

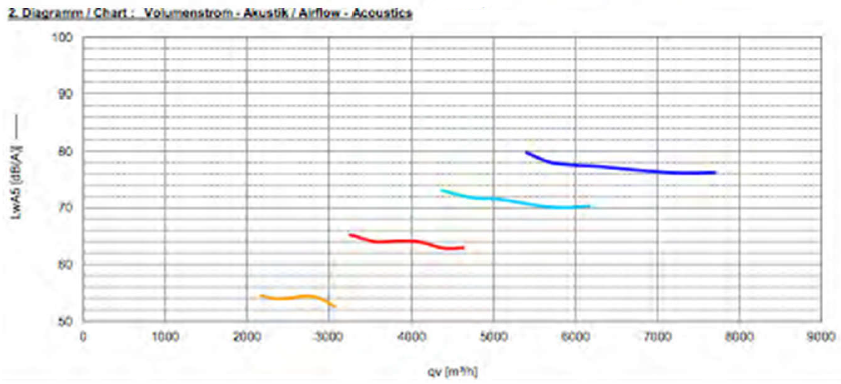

| Sound pressure level LpA or LwA [dB(A)] |  |
| Number of wings | 5 |
| Rotor | |
| Wall ring plate | |
| Conformity | |
| Weight [kg] | |
| Airflow direction | A |
| Model | Pipe installation |

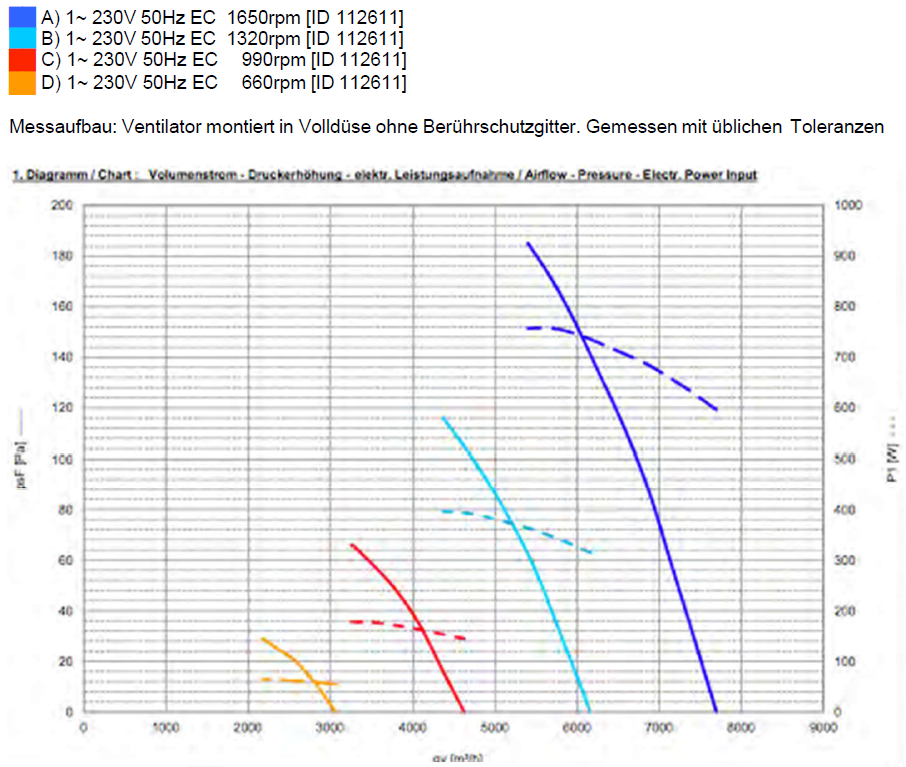

| Max. volume flow qv, (where psf = 0 Pa) [m³/h] | 7700 |
| Max. pressure psf [Pa] | 187 |
| Max. volume flow qv [m³/h] (at max. psf [Pa]) | 5400 |
 | |
