Chains and Connecting links

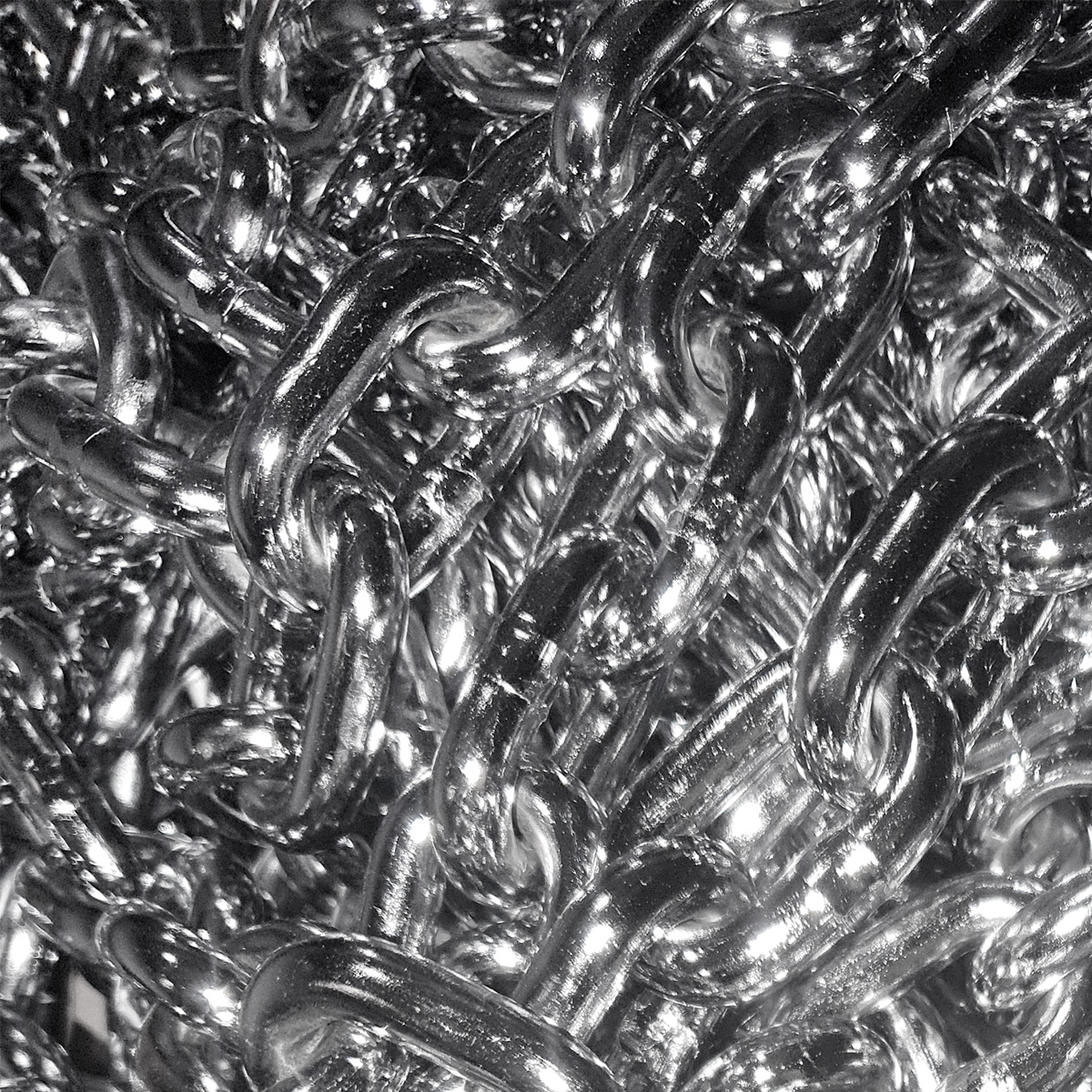

Chain 8x25.4 / 8x25.3
Mn steel, case-hardened
- calibrated to gauge
- electro-galvanised
- suitable for Meyn / Baader Linco / Marel Stork
- with acceptance test certificate EN 10204-3.1
| Weight | approx 1,35 kg/m |
| Lengths | of 50 m |
| Nominal diameter d | 8 mm |
| Pitch t | 25,4 mm |
| Inner width b1 | min. 9,6 mm |
| Outer width b2 | max. 26,5 mm |
| Breaking force | min. 40 kN |

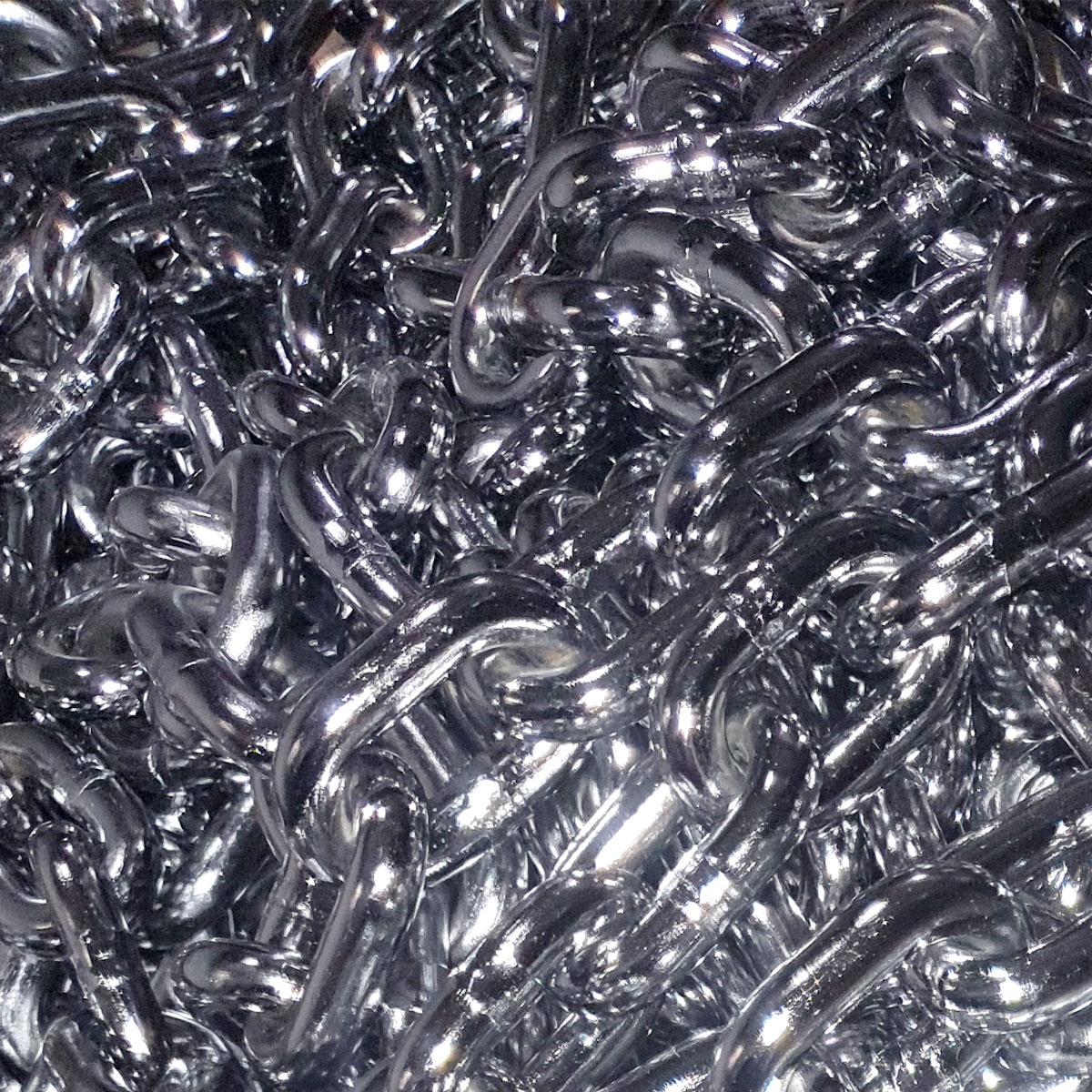

Chain 8x25.4 / 8x25.3
Stainless steel
- calibrated to gauge
- Surface blasted, pickled or electropolished
- suitable for Meyn / Baader Linco / Marel Stork
- with acceptance test certificate EN 10204-3.1
| Weight | approx 1,35 kg/m |
| Lengths | of 50 m |
| Nominal diameter d | 8 mm |
| Pitch t | 25,4 mm |
| Inner width b1 | min. 9,6 mm |
| Outer width b2 | max. 26,5 mm |
| Breaking force | min. 40 kN |

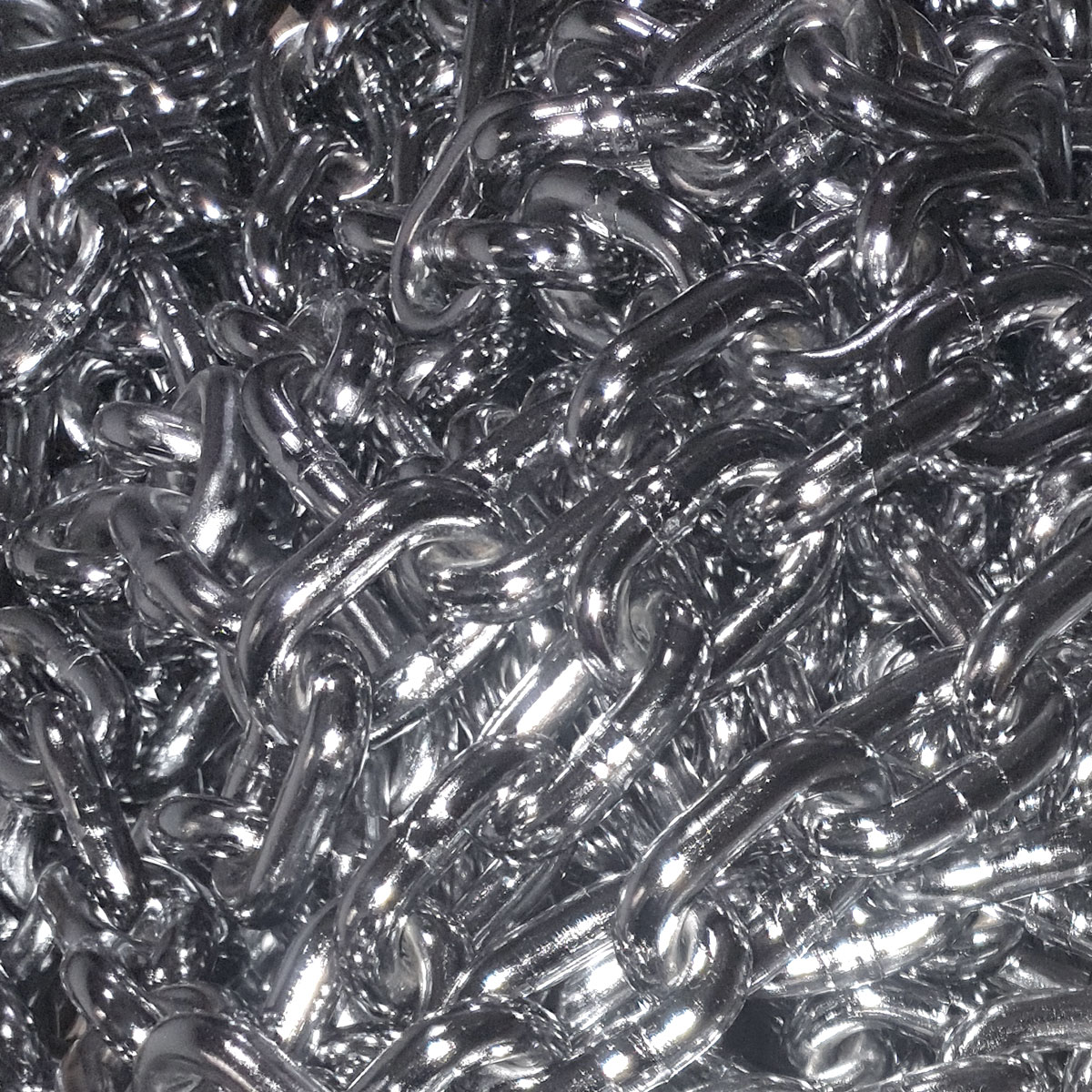

Chain 8x25.4
Stainless steel, hardened
- calibrated to gauge
- suitable for Meyn
- Surface blasted, pickled or electropolished
- with acceptance test certificate EN 10204-3.1
| Weight | approx 1,35 kg/m |
| Lengths | of 50 m |
| Nominal diameter d | 8 mm |
| Pitch t | 25,4 mm |
| Inner width b1 | min. 9,6 mm |
| Outer width b2 | max. 26,5 mm |
| Breaking force | min. 40 kN |

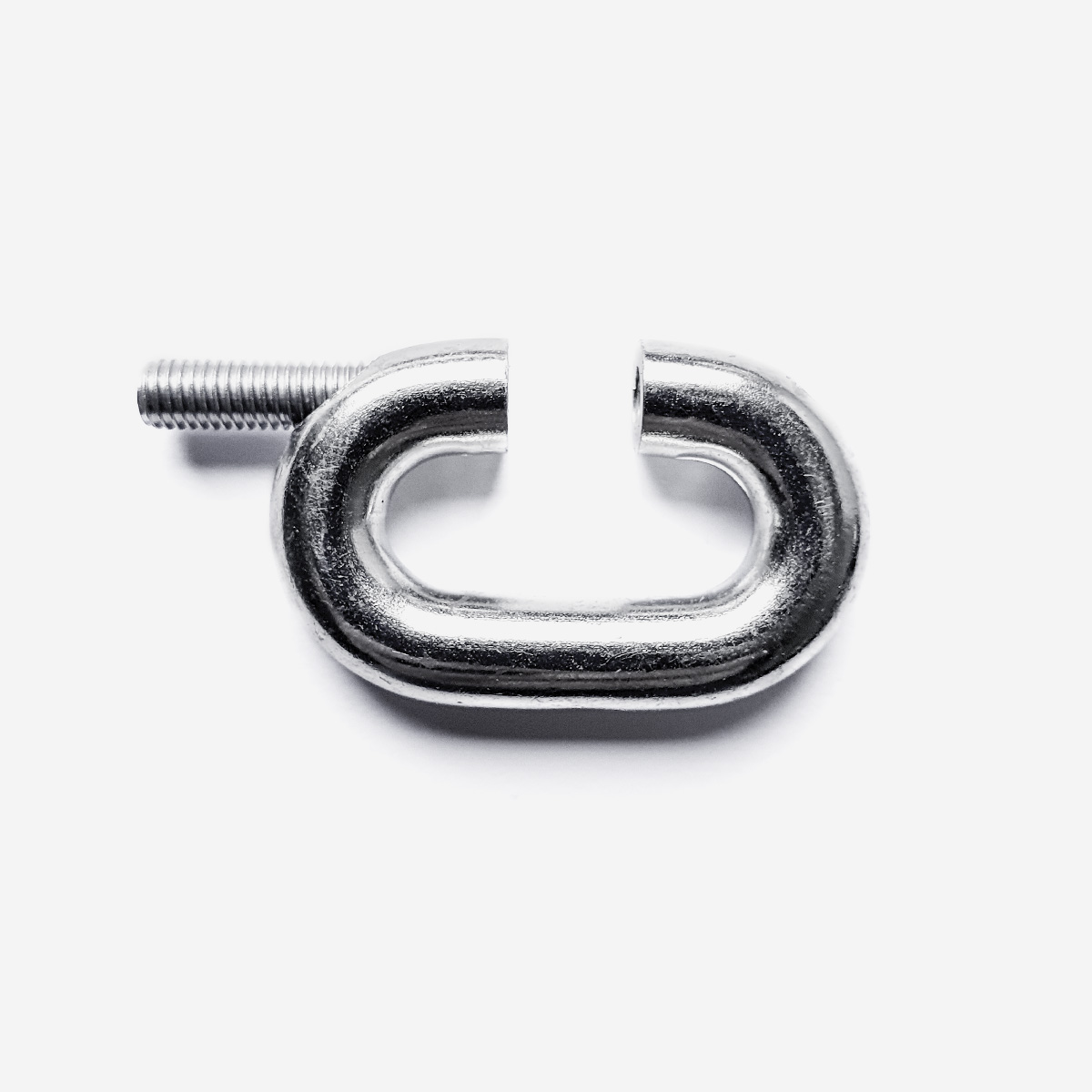

Connecting links for chain 8x25.4 / 8x25.3
- chain connecting link 8x25 with grub screw
- stainless steel, hardened
- breaking force BF min. 40 kN – suitable for chain (conventional connecting links are the weak point in the chain strand, as only a minimum breaking force of 24 kN is guaranteed)
- suitable for chain dimensions 8x25.4 and 8x25.3
- Also available as standard-joining link in hardened and electro galvanised with min. BF 24 kN
Further dimensions, materials (e.g. stainless steel V2A or V4A) and design variants available on request – also available in assembled version with trolleys.
