111
Matchcode

FN091-ZIQ.GQ.A5P1


Item number

ZV-184644

Product groupAxial fan
ModelStandard
Design
NameEcblue
Blade seriesFN
Fan series match codeFN091-ZI_.GQ.A5P1
Blade diameter [cm]91
Motor technologyEC
Rated voltage UN [V] UN [V]1~ 380-480V
Rated frequency fN [Hz]50/60
Input power P1 [kW]5
Rated current IN [A]8,0-6,4
Rated speed nN [min-1]1280
Current rating increase Δ I [%]
Controlling starting current IA [A]
Operating capacitor C400V [µF]
Thermal classTHCL 155
Minimum permissible flow medium temperature [°C]
Maximum permissible flow medium temperature [°C]40
Electrical connection

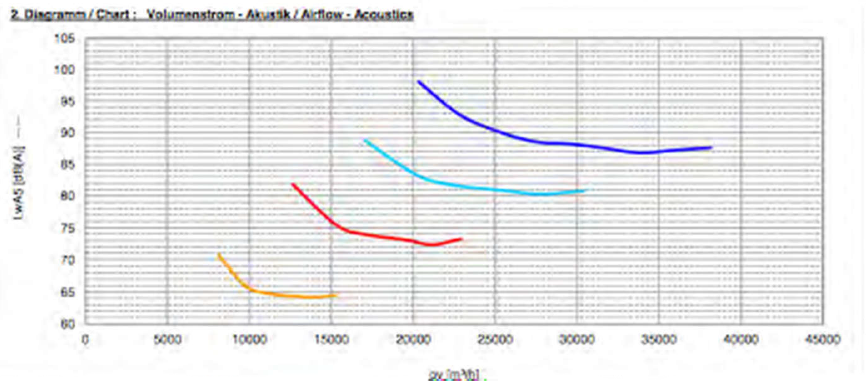

Sound pressure level LpA or LwA [dB(A)]
Number of wings5
Rotor
Wall ring platePlastic
Con­for­mity
Weight [kg]
Airflow directionA
ModelWall ring plate

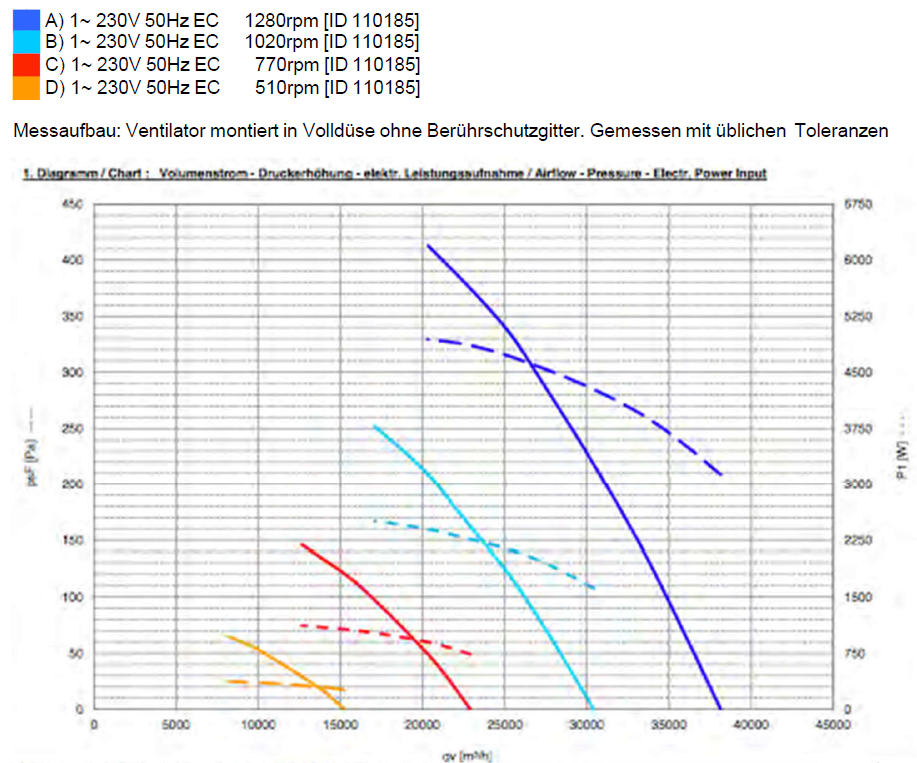

Max. volume flow qv, (where psf = 0 Pa) [m³/h]38000
Max. pressure psf [Pa]415
Max. volume flow qv [m³/h] (at max. psf [Pa])20500
