MatchcodeDN45V-2DK.D7.19.GItem number ZV-190107 |  |
|---|---|
| Product group | Axial fan |
| Model | Standard |

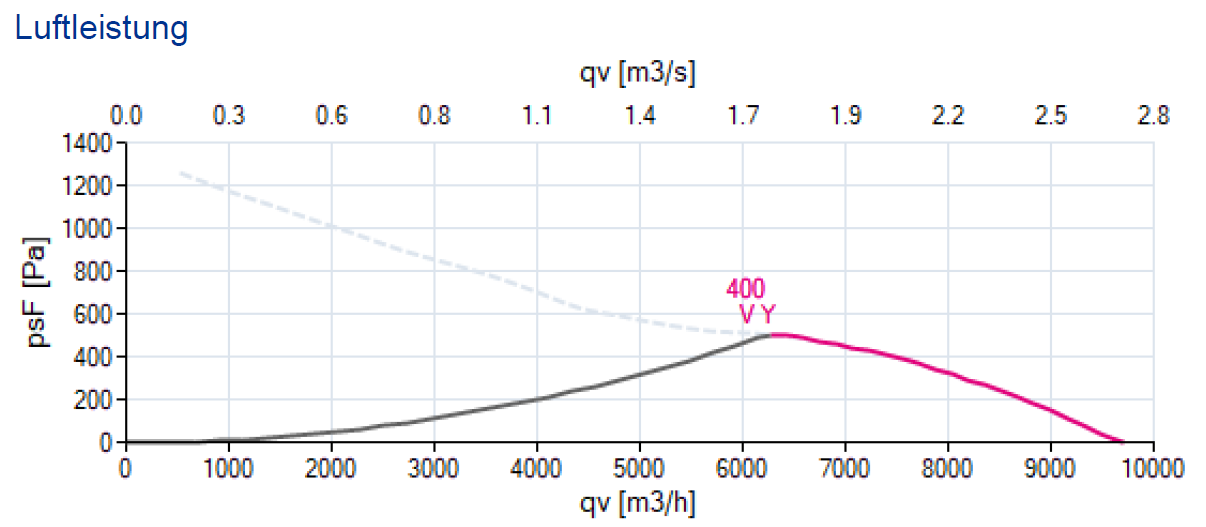

| Design | Characteristic curves, output of the large motor: (A) |
| Name | MAXvent owlet |
| Blade series | DN |
| Fan series match code | DN45V-2DK._ |
| Blade diameter [cm] | 45 |
| Motor technology | AC |
| Rated voltage UN [V] UN [V] | 3~400 +/-10% |
| Rated frequency fN [Hz] | 50 |
| Input power P1 [kW] | 2,2 |
| Rated current IN [A] | 4,5 |
| Rated speed nN [min-1] | |
| Current rating increase Δ I [%] | |
| Controlling starting current IA [A] | |
| Operating capacitor C400V [µF] | |
| Thermal class | THCL 155 |
| Minimum permissible flow medium temperature [°C] | -20 |
| Maximum permissible flow medium temperature [°C] | 60 |
| Electrical connection | External junction box |

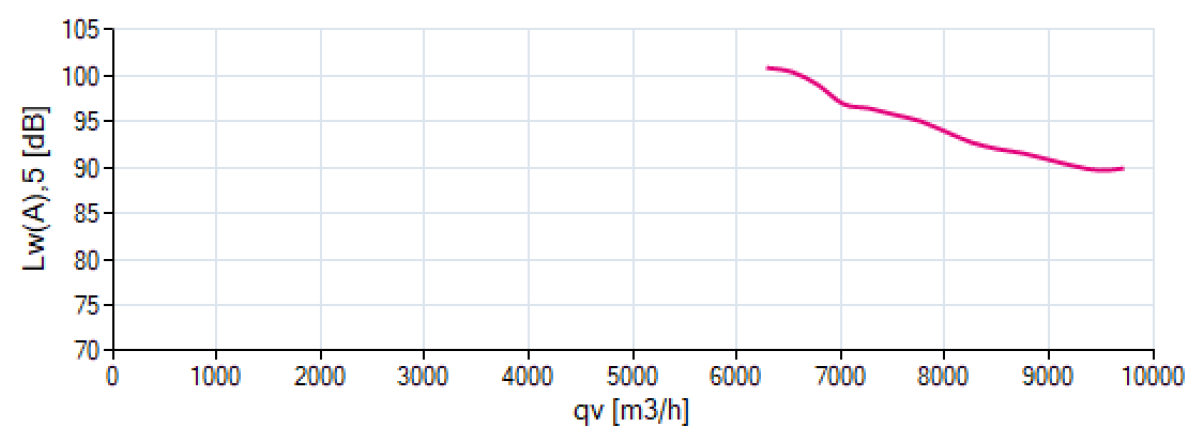

| Sound pressure level LpA or LwA [dB(A)] |  |
| Number of wings | 9 |
| Rotor | |
| Wall ring plate | |
| Conformity | ErP 2015 |
| Weight [kg] | 43 |
| Airflow direction | V |
| Model | Short housing: Design K |
| Max. volume flow qv, (where psf = 0 Pa) [m³/h] | 9700 |
| Max. pressure psf [Pa] | 500 |
| Max. volume flow qv [m³/h] (at max. psf [Pa]) | 6300 |
 | |
| location_on | Ventos Lueftungstechnik GmbH Osterheide 10 49124 Georgsmarienhuette Germany |
| phone link | +49 5401 40210 +49 5401 45598 info@ventos.de www.ventos.de |
