MatchcodeZF071-ZIL.DG.V3Item number |  |
|---|---|
| Product group | Axial fan |
| Model | Standard |
| Design | |
| Name | ZAplus |
| Blade series | ZF |
| Fan series match code | ZF071-___.__.V3 |
| Blade diameter [cm] | 71 |
| Motor technology | EC |
| Rated voltage UN [V] UN [V] | 1~200-277 |
| Rated frequency fN [Hz] | 50/60 |
| Input power P1 [kW] | 0,94 |
| Rated current IN [A] | 4,8-3,4 |
| Rated speed nN [min-1] | 1200 |
| Current rating increase Δ I [%] | |
| Controlling starting current IA [A] | |
| Operating capacitor C400V [µF] | |
| Thermal class | THCL 155 |
| Minimum permissible flow medium temperature [°C] | 10000 |
| Maximum permissible flow medium temperature [°C] | 50 |
| Electrical connection | |

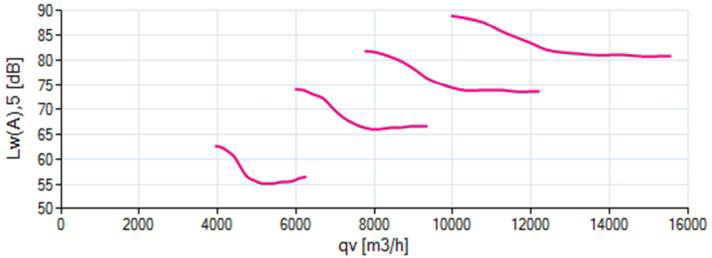

| Sound pressure level LpA or LwA [dB(A)] |  |
| Number of wings | 3 |
| Rotor | Aluminium, powder-coated, ultramarine blue |
| Wall ring plate | Non-lacquered, black |
| Conformity | ErP 2015 |
| Weight [kg] | 23 |
| Airflow direction | V |
| Model | Wall ring plate, made from plastic, without protective grate |

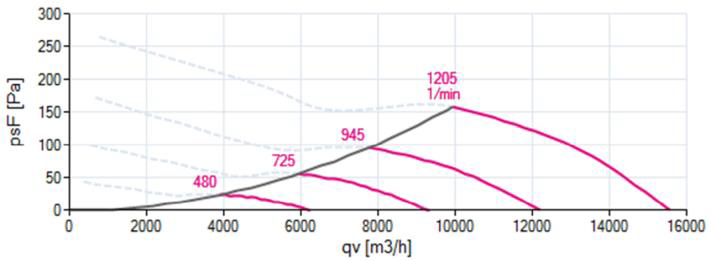

| Max. volume flow qv, (where psf = 0 Pa) [m³/h] | 15500 |
| Max. pressure psf [Pa] | 160 |
| Max. volume flow qv [m³/h] (at max. psf [Pa]) | 10000 |
 | |
