MatchcodeFN063-SDQ.4I.A7P1Item number ZV-141382 |  |
|---|---|
| Product group | Axial fan |
| Model | Standard |
| Design | (Successor for article 131197) |
| Name | |
| Blade series | FN |
| Fan series match code | FN063-SD_.4I.A7P1 |
| Blade diameter [cm] | 63 |
| Motor technology | AC |
| Rated voltage UN [V] UN [V] | 3~400V/400V/460V ±10% D/Y |
| Rated frequency fN [Hz] | 50/60 |
| Input power P1 [kW] | 0,62 |
| Rated current IN [A] | 1,25 / 0,72 _ 1,6 / 0,88 _ 1,55 / 0,94 |
| Rated speed nN [min-1] | 900 / 720 _ 980 / 640 _ 1040 / 730 |
| Current rating increase Δ I [%] | 15 |
| Controlling starting current IA [A] | |
| Operating capacitor C400V [µF] | |
| Thermal class | THCL 155 |
| Minimum permissible flow medium temperature [°C] | 10000 |
| Maximum permissible flow medium temperature [°C] | 70 |
| Electrical connection | Junction box |
| Sound pressure level LpA or LwA [dB(A)] | 76 |
| Number of wings | 7 |
| Rotor | Aluminium, non-lacquered |
| Wall ring plate | Sheet of metal |
| Conformity | ErP2015 |
| Weight [kg] | 24,5 |
| Airflow direction | A |
| Model | Q |

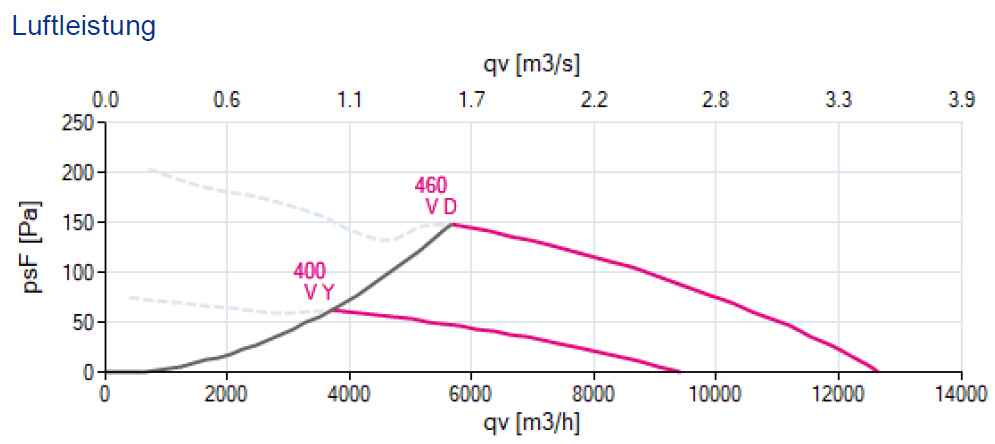

| Max. volume flow qv, (where psf = 0 Pa) [m³/h] | 9400 |
| Max. pressure psf [Pa] | 60 |
| Max. volume flow qv [m³/h] (at max. psf [Pa]) | 3600 |
 | |
