MatchcodeFF071-6DT.6F.A3P2Item number ZV-169735 |  |
|---|---|
| Product group | Axial fan |
| Model | ß - Agriculture |
| Design | |
| Name | |
| Blade series | FF |
| Fan series match code | FF071-6D_.6F.A3P2 |
| Blade diameter [cm] | 71 |
| Motor technology | AC |
| Rated voltage UN [V] UN [V] | 3~230/400 +/-10% |
| Rated frequency fN [Hz] | 50 |
| Input power P1 [kW] | 0,6 |
| Rated current IN [A] | 2,7/1,55 |
| Rated speed nN [min-1] | 940 |
| Current rating increase Δ I [%] | 0 |
| Controlling starting current IA [A] | |
| Operating capacitor C400V [µF] | |
| Thermal class | THCL 155 |
| Minimum permissible flow medium temperature [°C] | -40 |
| Maximum permissible flow medium temperature [°C] | 70 |
| Electrical connection | Junction box |
| Sound pressure level LpA or LwA [dB(A)] | 51 |
| Number of wings | 3 |
| Rotor | Aluminium, 1-coat lacquer, black |
| Wall ring plate | |
| Conformity | ErP 2015 |
| Weight [kg] | |
| Airflow direction | A |
| Model | T |

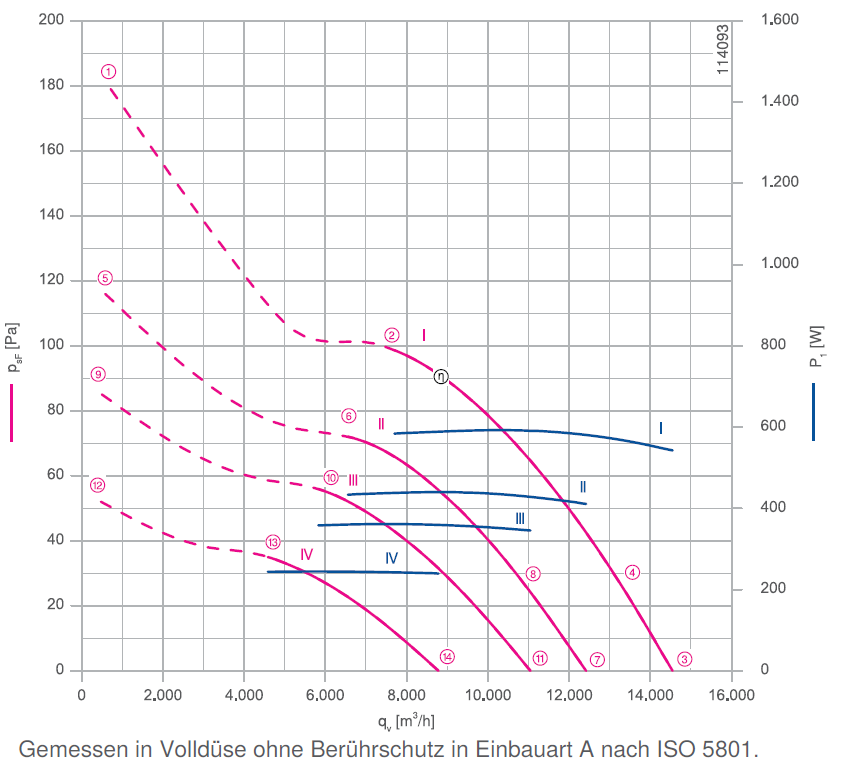

| Max. volume flow qv, (where psf = 0 Pa) [m³/h] | 14500 |
| Max. pressure psf [Pa] | 100 |
| Max. volume flow qv [m³/h] (at max. psf [Pa]) | 7500 |
 | |
