MatchcodeDN10A-ZIU.GQ.11.G3Item number ZV-194425 |  |
|---|---|
| Product group | Axial fan |
| Model | Standard |
| Design | For drying technology: potato drying, onion drying … |
| Name | MAXvent owlet |
| Blade series | DN |
| Fan series match code | DN10A-ZIU.GQ.11.G3 |
| Blade diameter [cm] | 100 |
| Motor technology | EC |
| Rated voltage UN [V] UN [V] | 3~380-480V |
| Rated frequency fN [Hz] | 50/60 |
| Input power P1 [kW] | 5,2 |
| Rated current IN [A] | 8,4-6,6 |
| Rated speed nN [min-1] | 1500 |
| Current rating increase Δ I [%] | |
| Controlling starting current IA [A] | |
| Operating capacitor C400V [µF] | |
| Thermal class | THCL 155 |
| Minimum permissible flow medium temperature [°C] | -35 |
| Maximum permissible flow medium temperature [°C] | 40 |
| Electrical connection | Integrated controller |
| Sound pressure level LpA or LwA [dB(A)] | 72-105 |
| Number of wings | 3 |
| Rotor | Aluminium, 1-coat lacquer, ultramarine blue |
| Wall ring plate | Round housing (with e-nozzle), unpainted |
| Conformity | ErP 2015; IE5 |
| Weight [kg] | 68 |
| Airflow direction | A |
| Model | Ultra-short housing: design U |

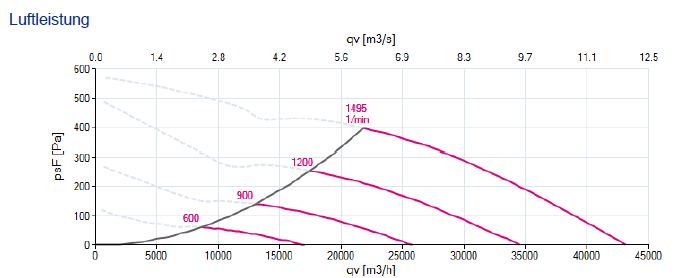

| Max. volume flow qv, (where psf = 0 Pa) [m³/h] | 43000 |
| Max. pressure psf [Pa] | 400 |
| Max. volume flow qv [m³/h] (at max. psf [Pa]) | 22000 |
 | |
