MatchcodeFP050-ZII.0F.V3P1Item number ZV-193908 |  |
|---|---|
| Product group | Axial fan |
| Model | Standard |
| Design | For heat pumps |
| Name | FE3owlet-Ecblue |
| Blade series | FP |
| Fan series match code | FP050-ZI_.0F.A3P1 |

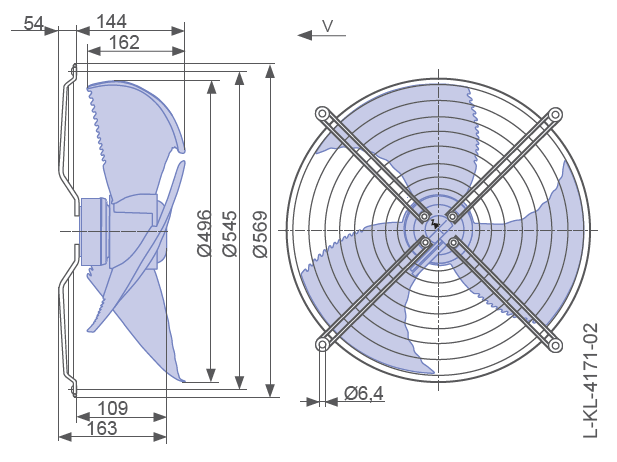

| Blade diameter [cm] | 50 |
| Motor technology | EC |
| Rated voltage UN [V] UN [V] | 1~200-240V |
| Rated frequency fN [Hz] | 50/60 |
| Input power P1 [kW] | 0,16 |
| Rated current IN [A] | 1,60-1,35 |
| Rated speed nN [min-1] | 930 |
| Current rating increase Δ I [%] | |
| Controlling starting current IA [A] | |
| Operating capacitor C400V [µF] | |
| Thermal class | THCL 155 |
| Minimum permissible flow medium temperature [°C] | -30 |
| Maximum permissible flow medium temperature [°C] | 60 |
| Electrical connection | Integrated controller with variable connection cable |
| Sound pressure level LpA or LwA [dB(A)] | 36-60 |
| Number of wings | 3 |
| Rotor | Steel, 2-coat lacquer, ultramarine blue |
| Wall ring plate | |
| Conformity | ErP 2015 |
| Weight [kg] | 5,6 |
| Airflow direction | V |
| Model | I |

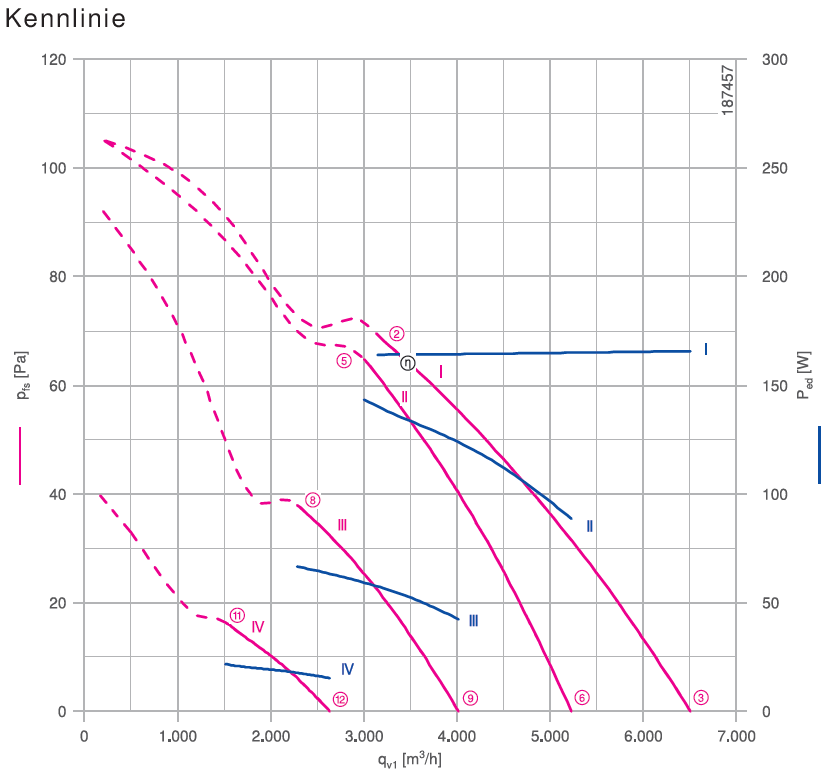

| Max. volume flow qv, (where psf = 0 Pa) [m³/h] | 6500 |
| Max. pressure psf [Pa] | 70 |
| Max. volume flow qv [m³/h] (at max. psf [Pa]) | 3100 |
 | |
