MatchcodeFN030-6IL.BA.A7P2Item number ZV-165254 |  |
|---|---|
| Product group | Axial fan |
| Model | Standard |
| Design | Suitable for textile ventilation hoses / ducts |
| Name | ECblue |
| Blade series | FN |
| Fan series match code | FN030-6I_.BA.A7P2 |
| Blade diameter [cm] | 30 |
| Motor technology | EC |
| Rated voltage UN [V] UN [V] | 1~200-277V |
| Rated frequency fN [Hz] | 50/60 |
| Input power P1 [kW] | 0,42 |
| Rated current IN [A] | 2,2-1,55 |
| Rated speed nN [min-1] | 2750 |
| Current rating increase Δ I [%] | |
| Controlling starting current IA [A] | |
| Operating capacitor C400V [µF] | |
| Thermal class | THCL 155 |
| Minimum permissible flow medium temperature [°C] | -35 |
| Maximum permissible flow medium temperature [°C] | 60 |
| Electrical connection | Integrated controller |
| Sound pressure level LpA or LwA [dB(A)] | 61-84 |
| Number of wings | 7 |
| Rotor | Steel, 2-coat lacquer, ultramarine blue |
| Wall ring plate | Wall ring, steel, powder-coated, deep black |
| Conformity | ErP 2015 |
| Weight [kg] | 8 |
| Airflow direction | A |
| Model | L |

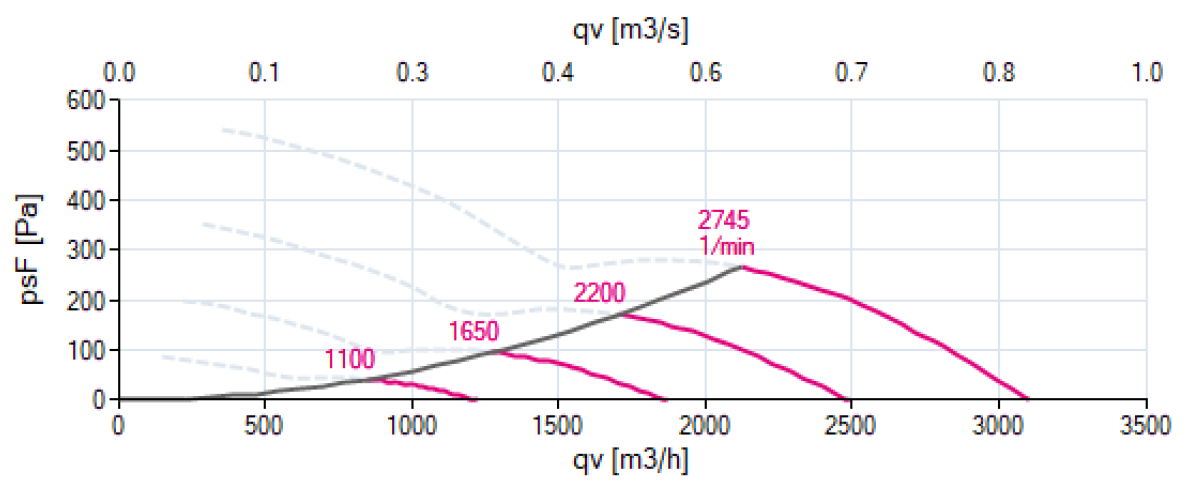

| Max. volume flow qv, (where psf = 0 Pa) [m³/h] | 3100 |
| Max. pressure psf [Pa] | 270 |
| Max. volume flow qv [m³/h] (at max. psf [Pa]) | 2150 |
 | |
