ZIEHL ABEGG - FR 351/4 N4A LG270 0,37KW-50HZ /

Matchcode FR 351/4 N4A LG270 0,37KW-50HZ Item number
Product group	Radial fan
Model	Standard or ATEX
Design	Ferrari radial fan for clean + slightly dusty air
Name	FR
Blade series	Backwards blades impeller
Fan series match code	FR 351/4 N4A
Blade diameter [cm]	35.5
Motor technology	AC/EC
Rated voltage U_N [V] UN [V]	3~230/400
Rated frequency fN [Hz]	50 / on request
Input power P1 [kW]	0,37
Rated current IN [A]	0,93/0,53
Rated speed nN [min-1]	1360
Current rating increase Δ I [%]
Controlling starting current IA [A]
Operating capacitor C400V [µF]
Thermal class
Minimum permissible flow medium temperature [°C]	-20
Maximum permissible flow medium temperature [°C]	100
Electrical connection
Sound pressure level LpA or LwA [dB(A)]	64-82
Number of wings
Rotor
Wall ring plate
Conformity	ErP 2015
Weight [kg]	63
Airflow direction
Model	with direct drive, single inlet (single flow)
Max. volume flow qv, (where psf = 0 Pa) [m³/h]	3900
Max. pressure psf [Pa]	380
Max. volume flow qv [m³/h] (at max. psf [Pa])	1330

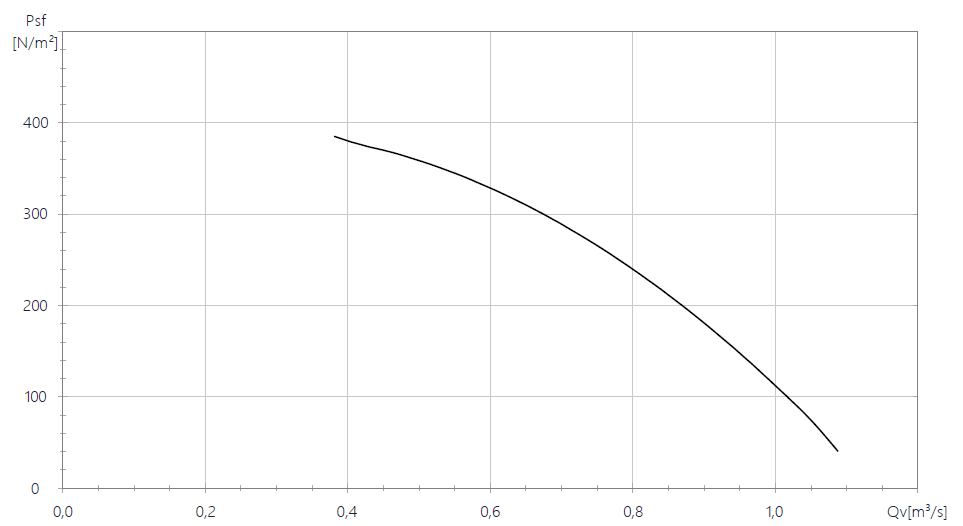

Performance data

Effizienz 75%
