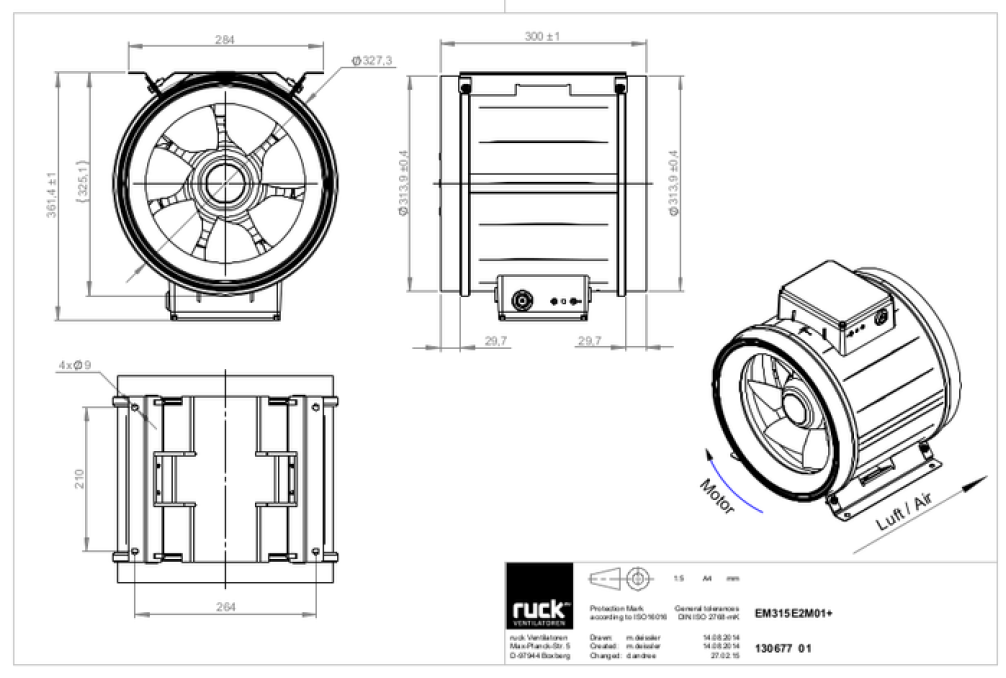

MatchcodeEM 315 E2M 01Item number RV-130677 |  |
|---|---|
| Product group | Axial fan |
| Model | Plastic fan |
| Design | Ruck diagonal fan |
| Name | Etamaster |
| Blade series | EM |
| Fan series match code | EM 315 |
| Blade diameter [cm] | 31.5 |
| Motor technology | AC |
| Rated voltage UN [V] UN [V] | 1~230V |
| Rated frequency fN [Hz] | 50 |
| Input power P1 [kW] | 0,436 |
| Rated current IN [A] | 2,06 |
| Rated speed nN [min-1] | 2850 |
| Current rating increase Δ I [%] | |
| Controlling starting current IA [A] | |
| Operating capacitor C400V [µF] | 15 |
| Thermal class | |
| Minimum permissible flow medium temperature [°C] | -25 |
| Maximum permissible flow medium temperature [°C] | 55 |
| Electrical connection | |
| Sound pressure level LpA or LwA [dB(A)] | 56-75 |
| Number of wings | |
| Rotor | |
| Wall ring plate | Plastic housing |
| Conformity | ErP 2015 |
| Weight [kg] | 12.26 |
| Airflow direction | V |
| Model | Pipe connection diameter DN256 |

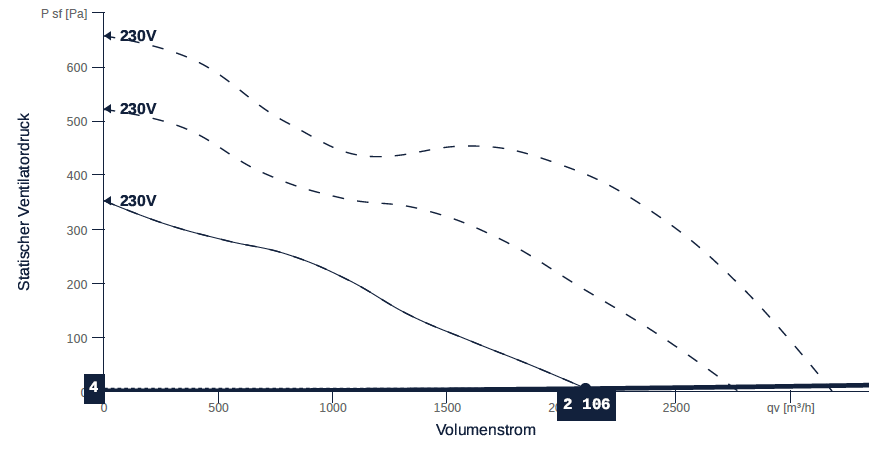

| Max. volume flow qv, (where psf = 0 Pa) [m³/h] | 3180 |
| Max. pressure psf [Pa] | 414 |
| Max. volume flow qv [m³/h] (at max. psf [Pa]) | 2017 |
 | |
| Performance data | Gesamteffizienz 66,9% |
