ZIEHL ABEGG - DVL 500 E4 RK 01 / RV-160873

Matchcode DVL 500 E4 RK 01 Item number RV-160873
Product group	Roof fan
Model	Radial fan
Design	Ruck roof fan
Name	DVL
Blade series	Backwards blades impeller
Fan series match code	DVL 500
Blade diameter [cm]	50
Motor technology	AC
Rated voltage U_N [V] UN [V]	1~230V
Rated frequency fN [Hz]	50
Input power P1 [kW]	1,319
Rated current IN [A]	7,34
Rated speed nN [min-1]	1460
Current rating increase Δ I [%]
Controlling starting current IA [A]
Operating capacitor C400V [µF]	40
Thermal class
Minimum permissible flow medium temperature [°C]	-25
Maximum permissible flow medium temperature [°C]	55
Electrical connection
Sound pressure level LpA or LwA [dB(A)]	78-80
Number of wings
Rotor
Wall ring plate	Aluminium housing
Conformity	ErP 2015
Weight [kg]	55.2
Airflow direction	vertical blow-out
Model	Pipe connection diameter DN400
Max. volume flow qv, (where psf = 0 Pa) [m³/h]	7390
Max. pressure psf [Pa]	750
Max. volume flow qv [m³/h] (at max. psf [Pa])	2700

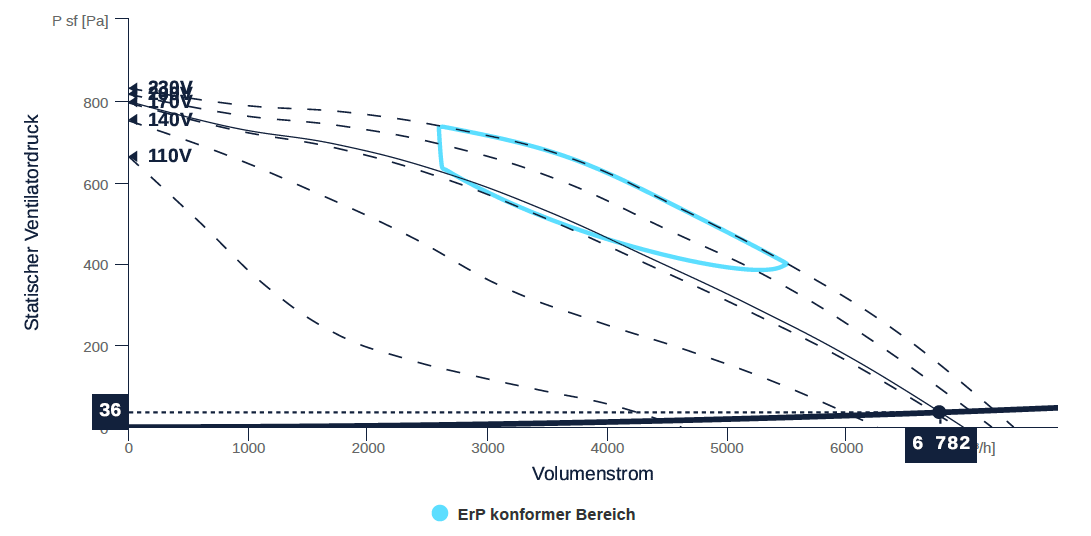

Performance data

Ventilatorwirkungsgrad max. 49,8%
