MatchcodeDVL 450 EC RK 01Item number RV-163346 |  |
|---|---|
| Product group | Roof fan |
| Model | Radial fan |
| Design | Ruck roof fan |
| Name | DVL |
| Blade series | Backwards blades impeller |
| Fan series match code | DVL 450 |
| Blade diameter [cm] | 45 |
| Motor technology | EC |
| Rated voltage UN [V] UN [V] | 1~230V |
| Rated frequency fN [Hz] | 50 / 60 |
| Input power P1 [kW] | 1,261 |
| Rated current IN [A] | 9,15 |
| Rated speed nN [min-1] | 1650 |
| Current rating increase Δ I [%] | |
| Controlling starting current IA [A] | |
| Operating capacitor C400V [µF] | |
| Thermal class | |
| Minimum permissible flow medium temperature [°C] | -20 |
| Maximum permissible flow medium temperature [°C] | 60 |
| Electrical connection | |
| Sound pressure level LpA or LwA [dB(A)] | 84-88 |
| Number of wings | |
| Rotor | |
| Wall ring plate | Aluminium housing |
| Conformity | ErP 2015 |
| Weight [kg] | 44 |
| Airflow direction | vertical blow-out |
| Model | Pipe connection diameter DN400 |
| Max. volume flow qv, (where psf = 0 Pa) [m³/h] | 6910 |
| Max. pressure psf [Pa] | 850 |
| Max. volume flow qv [m³/h] (at max. psf [Pa]) | 1500 |
 | |

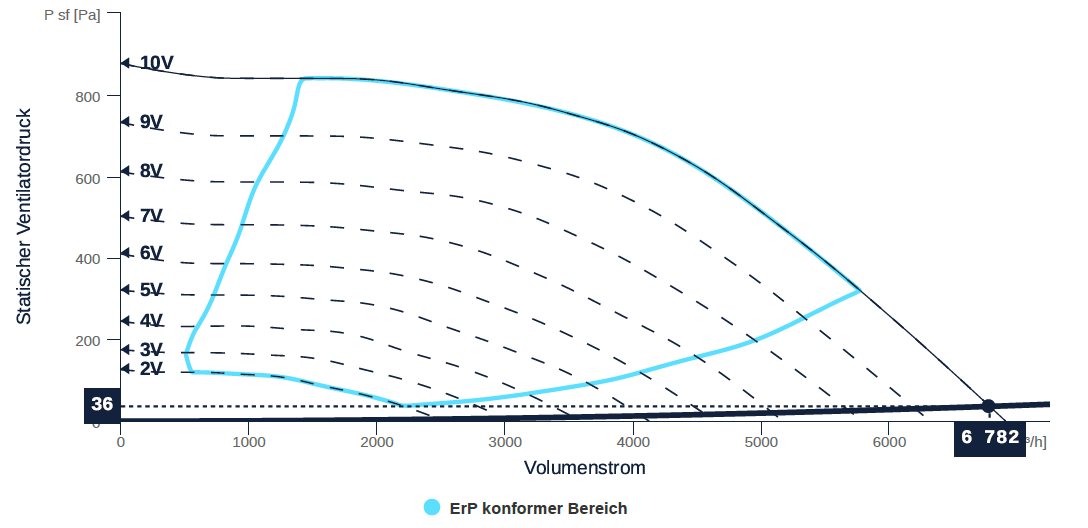

| Performance data | Ventilatorwirkungsgrad max. 58,4% |
