MatchcodeFN091-SDS.7Q.V5P1Item number ZV-161366 |  |
|---|---|
| Product group | Axial fan |
| Model | Standard |
| Design | Refrigeration technology |
| Name | |
| Blade series | FN |
| Fan series match code | FN091-SD_.7Q.V5P1 |
| Blade diameter [cm] | 91 |
| Motor technology | AC |
| Rated voltage UN [V] UN [V] | 3~400, 3~400, 3~460 |
| Rated frequency fN [Hz] | 50, 60, 60 |
| Input power P1 [kW] | 2,1 |
| Rated current IN [A] | 5,1/2,6, 5,7/3,3, 5,9/3,4 |
| Rated speed nN [min-1] | 910/770, 1020/790, 1060/860 |
| Current rating increase Δ I [%] | 0 |
| Controlling starting current IA [A] | |
| Operating capacitor C400V [µF] | |
| Thermal class | THCL 155 |
| Minimum permissible flow medium temperature [°C] | -30 |
| Maximum permissible flow medium temperature [°C] | 80 |
| Electrical connection | Junction box |
| Sound pressure level LpA or LwA [dB(A)] | 74-88 |
| Number of wings | 5 |
| Rotor | Aluminium, non-lacquered |
| Wall ring plate | Aluminium, non-lacquered |
| Conformity | ErP 2015 |
| Weight [kg] | 52.7 |
| Airflow direction | V |
| Model | S |
| Max. volume flow qv, (where psf = 0 Pa) [m³/h] | 27500 |
| Max. pressure psf [Pa] | 200 |
| Max. volume flow qv [m³/h] (at max. psf [Pa]) | 12000 |
 | |

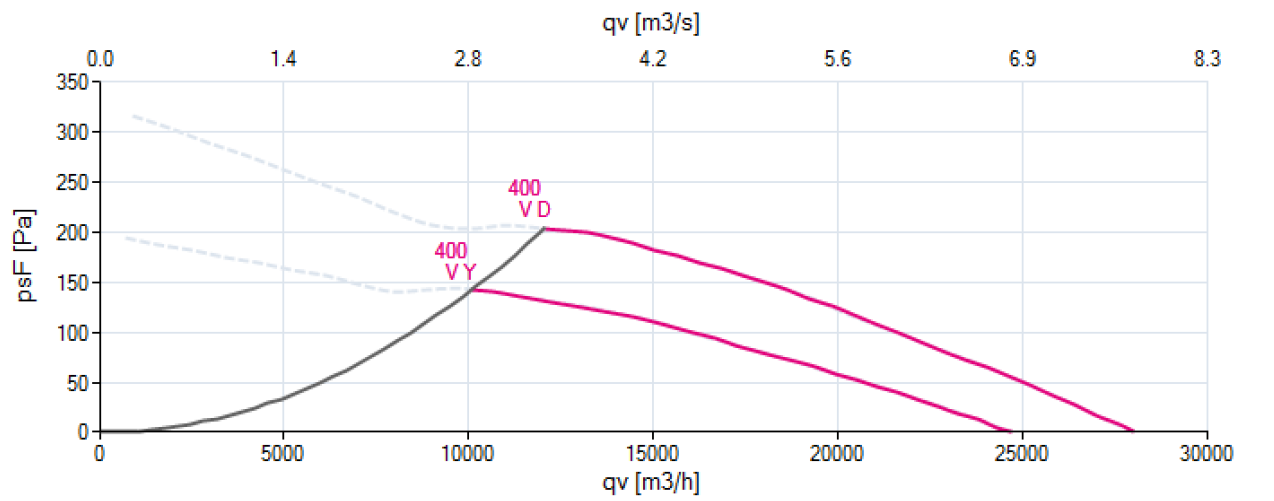

| Performance data | Ventilatorwirkungsgrad max. 40,0% |
