ZIEHL ABEGG - FN035-6IQ.BA.A7P2 / ZV-165263

Matchcode FN035-6IQ.BA.A7P2 Item number ZV-165263
Product group	Axial fan
Model	Standard
Design
Name	Ecblue
Blade series	FN
Fan series match code	FN035-_IQ.BA.A7P2
Blade diameter [cm]	35
Motor technology	EC
Rated voltage U_N [V] UN [V]	1~200-277
Rated frequency fN [Hz]	50 / 60
Input power P1 [kW]	0,46
Rated current IN [A]	2,4-1,7
Rated speed nN [min-1]	2000
Current rating increase Δ I [%]
Controlling starting current IA [A]
Operating capacitor C400V [µF]
Thermal class	THCL 155
Minimum permissible flow medium temperature [°C]	-35
Maximum permissible flow medium temperature [°C]	55
Electrical connection	Integrated controller
Sound pressure level LpA or LwA [dB(A)]	54-82
Number of wings	7
Rotor	Steel, 2-coat lacquered (resistance class 3)
Wall ring plate	Wall ring, steel, powder-coated, deep black (resistance class 2)
Conformity	Erp 2015
Weight [kg]	9.5
Airflow direction	A
Model	Q
Max. volume flow qv, (where psf = 0 Pa) [m³/h]	4500
Max. pressure psf [Pa]	195
Max. volume flow qv [m³/h] (at max. psf [Pa])	2500

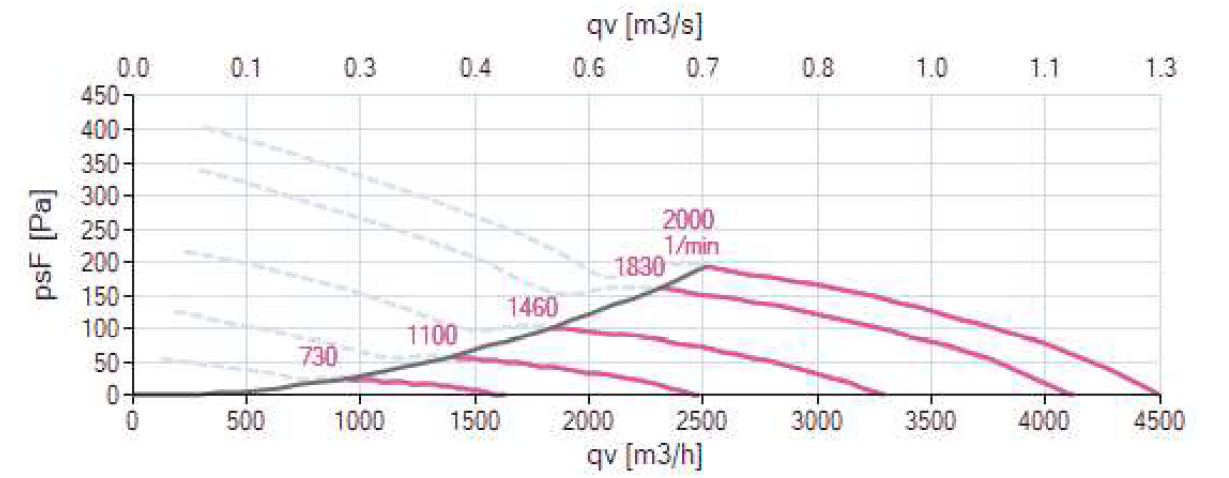

Performance data

Effizienzgrad N ist = 47,2
