MatchcodeFN025-4IL.Z8.A5P4Item number ZV-178106 |  |
|---|---|
| Product group | Axial fan |
| Model | Standard |
| Design | |
| Name | ECblue |
| Blade series | FN |
| Fan series match code | FN025-4I_.Z8.A5P4 |
| Blade diameter [cm] | 25 |
| Motor technology | EC |
| Rated voltage UN [V] UN [V] | 1~200-240 |
| Rated frequency fN [Hz] | 50 / 60 |
| Input power P1 [kW] | 0,14 |
| Rated current IN [A] | 1,4-1,15 |
| Rated speed nN [min-1] | 3090 |
| Current rating increase Δ I [%] | |
| Controlling starting current IA [A] | |
| Operating capacitor C400V [µF] | |
| Thermal class | THCL 155 |
| Minimum permissible flow medium temperature [°C] | -30 |
| Maximum permissible flow medium temperature [°C] | 50 |
| Electrical connection | Integrated controller |
| Sound pressure level LpA or LwA [dB(A)] | 55-78 |
| Number of wings | 5 |
| Rotor | Steel, 2-coat lacquered |
| Wall ring plate | Wall ring, round, plastic, unpainted, black |
| Conformity | ErP 2015 |
| Weight [kg] | 1.9 |
| Airflow direction | A |
| Model | L |
| Max. volume flow qv, (where psf = 0 Pa) [m³/h] | 1840 |
| Max. pressure psf [Pa] | 137 |
| Max. volume flow qv [m³/h] (at max. psf [Pa]) | 1100 |
 | |

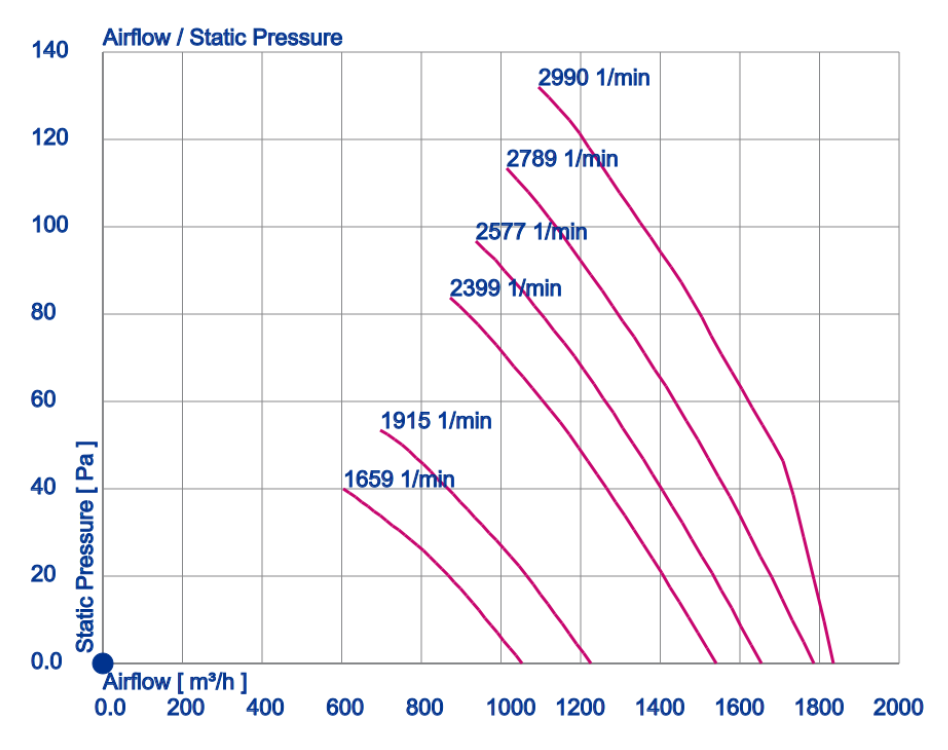

| Performance data | Effizienzgrad N ist = 53,9 |
