MatchcodeDN50V-2DK.D7.14.G9Item number ZV-198830 |  |
|---|---|
| Product group | Axial fan |
| Model | Standard |
| Design | |
| Name | MAXvent owlet |
| Blade series | DN |
| Fan series match code | DN50V-2DK.D7.14.G9 |
| Blade diameter [cm] | 50 |
| Motor technology | AC |
| Rated voltage UN [V] UN [V] | 3~230/400 |
| Rated frequency fN [Hz] | 50 |
| Input power P1 [kW] | 2,2 |
| Rated current IN [A] | 2,2 |
| Rated speed nN [min-1] | 7,56/4,35 |
| Current rating increase Δ I [%] | 2895 |
| Controlling starting current IA [A] | |
| Operating capacitor C400V [µF] | |
| Thermal class | THCL 155 |
| Minimum permissible flow medium temperature [°C] | -25 |
| Maximum permissible flow medium temperature [°C] | 60 |
| Electrical connection | External junction box |
| Sound pressure level LpA or LwA [dB(A)] | 91-103 |
| Number of wings | 9 |
| Rotor | |
| Wall ring plate | |
| Conformity | ErP 2015 |
| Weight [kg] | 33.9 |
| Airflow direction | V |
| Model | short tube without tail unit |

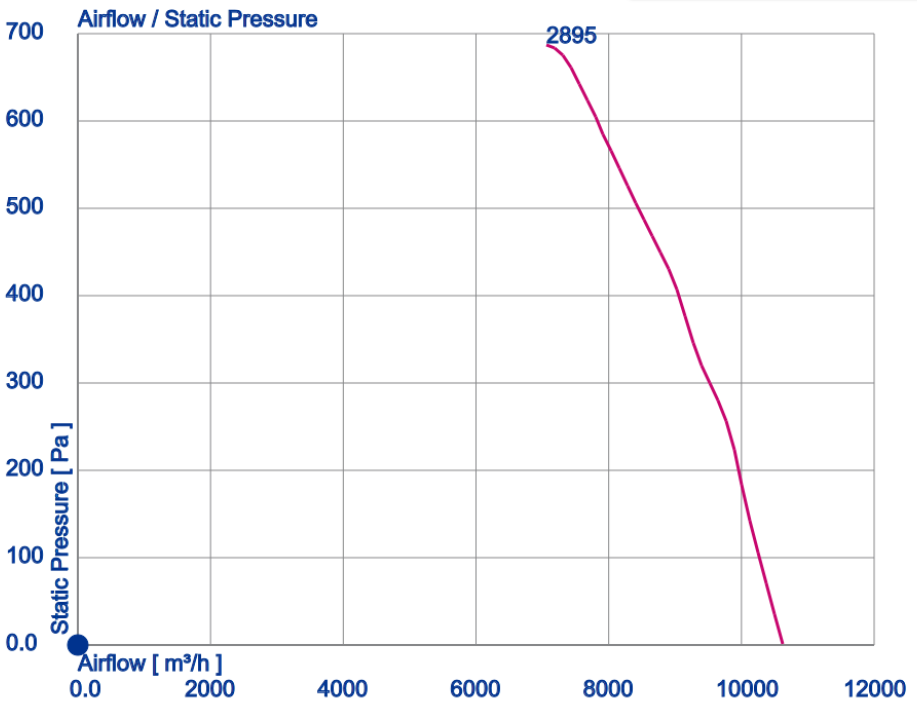

| Max. volume flow qv, (where psf = 0 Pa) [m³/h] | 10600 |
| Max. pressure psf [Pa] | 690 |
| Max. volume flow qv [m³/h] (at max. psf [Pa]) | 7000 |
 | |
| Performance data | Effizienzgrad: Nist = 47 |
