MatchcodeFC107-SDT.7Q.A3Item number ZV-192235 |  |
|---|---|
| Product group | Axial fan |
| Model | ß - Agriculture |
| Design | |
| Name | |
| Blade series | FC |
| Fan series match code | FC107-__T.7Q.A3 |
| Blade diameter [cm] | 107 |
| Motor technology | AC |
| Rated voltage UN [V] UN [V] | 3~400 |
| Rated frequency fN [Hz] | 50 |
| Input power P1 [kW] | 3,4 |
| Rated current IN [A] | 3,4/2,1 |
| Rated speed nN [min-1] | 6.2/3.7 |
| Current rating increase Δ I [%] | 870/670 |
| Controlling starting current IA [A] | |
| Operating capacitor C400V [µF] | |
| Thermal class | THCL 155 |
| Minimum permissible flow medium temperature [°C] | -40 |
| Maximum permissible flow medium temperature [°C] | 50 |
| Electrical connection | Junction box |
| Sound pressure level LpA or LwA [dB(A)] | 84-96 |
| Number of wings | 3 |
| Rotor | Aluminium, 2-coat lacquer, black |
| Wall ring plate | |
| Conformity | ErP 2015 |
| Weight [kg] | 44.2 |
| Airflow direction | A |
| Model | T |
| Max. volume flow qv, (where psf = 0 Pa) [m³/h] | 48000 |
| Max. pressure psf [Pa] | 140 |
| Max. volume flow qv [m³/h] (at max. psf [Pa]) | 28000 |
 | |

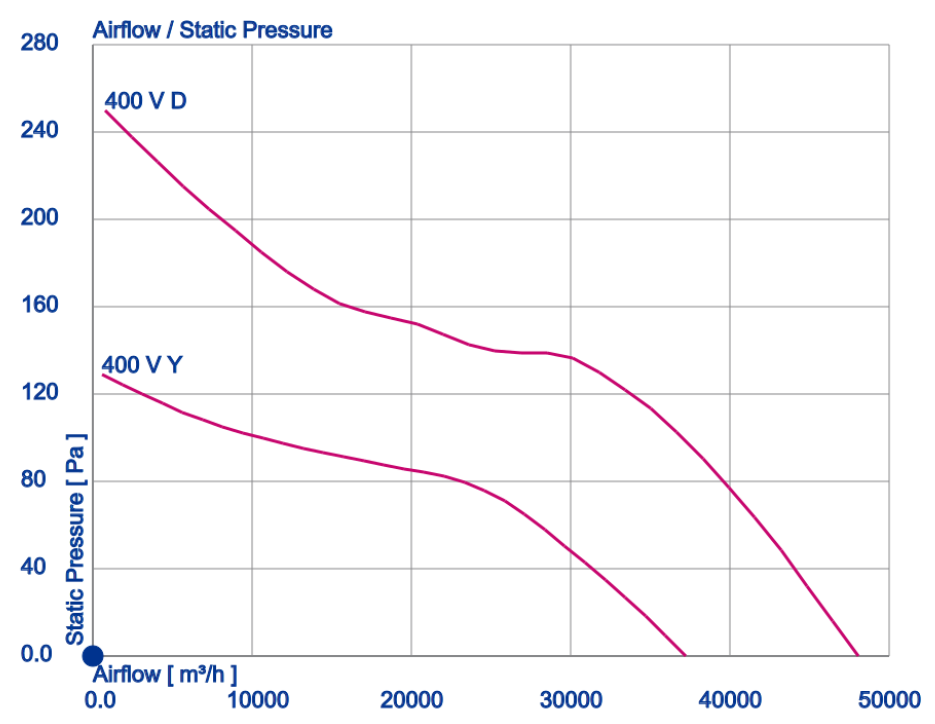

| Performance data | Effizienzgrad: Nist = 40.0 |
