ZIEHL ABEGG - FN045-VDK.4F.V7P1 / ZV-160453

Matchcode FN045-VDK.4F.V7P1 Item number ZV-160453
Product group	Axial fan
Model	Standard
Design	Refrigeration technology
Name
Blade series	FN
Fan series match code	FN045-__K.4_V7P1
Blade diameter [cm]	45
Motor technology	AC
Rated voltage U_N [V] UN [V]	3~400 / 3~460
Rated frequency fN [Hz]	50/60
Input power P1 [kW]	0,88
Rated current IN [A]	0,54/0,36 / 0,84/0,38 / 0,88/0,52
Rated speed nN [min-1]	1.1/0.66 / 1.5/0.76 / 1.4/0.84
Current rating increase Δ I [%]	1350/1020 / 1460/840 / 1560/1010
Controlling starting current IA [A]
Operating capacitor C400V [µF]
Thermal class	THCL 155
Minimum permissible flow medium temperature [°C]	-40
Maximum permissible flow medium temperature [°C]	70
Electrical connection	Junction box
Sound pressure level LpA or LwA [dB(A)]	70-74
Number of wings	7
Rotor	Aluminium, non-lacquered
Wall ring plate
Conformity	ErP 2015
Weight [kg]	11
Airflow direction	V
Model	K
Max. volume flow qv, (where psf = 0 Pa) [m³/h]	7200
Max. pressure psf [Pa]	145
Max. volume flow qv [m³/h] (at max. psf [Pa])	3700

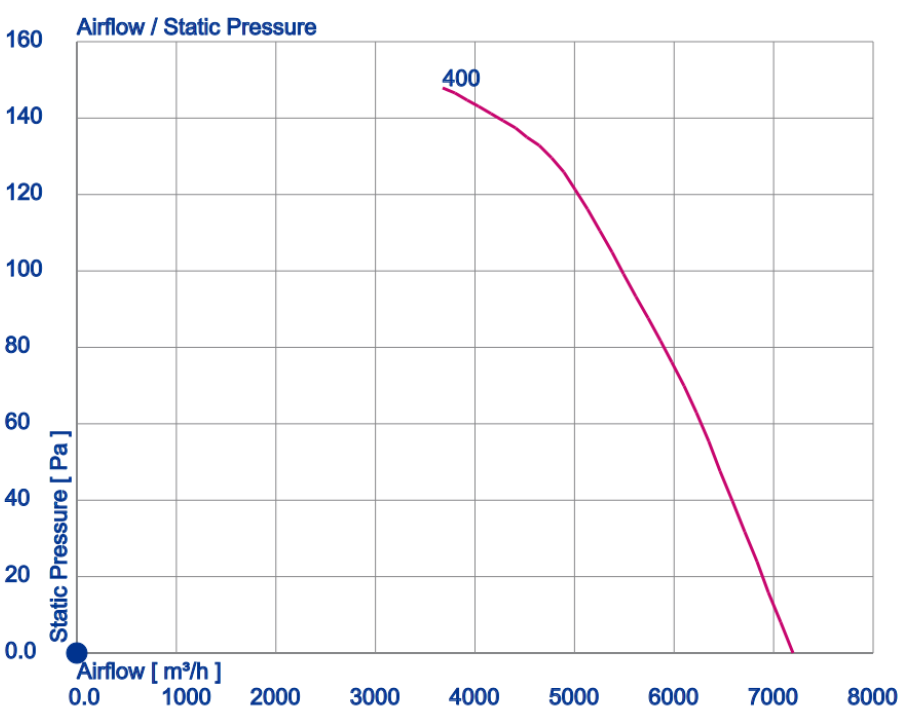

Performance data

Effizienzgrad: Nist = 42.0
