MatchcodeFN063-VDF.6N.V7P7Item number ZV-169701 |  |
|---|---|
| Product group | Axial fan |
| Model | Standard |
| Design | Refrigeration technology |
| Name | |
| Blade series | FN |
| Fan series match code | FN063-__F.6N.V7P7 |
| Blade diameter [cm] | 63 |
| Motor technology | AC |
| Rated voltage UN [V] UN [V] | 3~400 |
| Rated frequency fN [Hz] | 50 |
| Input power P1 [kW] | 2,6 |
| Rated current IN [A] | 2,6/1,75 |
| Rated speed nN [min-1] | 5.00/3.00 |
| Current rating increase Δ I [%] | 1330/1050 |
| Controlling starting current IA [A] | |
| Operating capacitor C400V [µF] | |
| Thermal class | THCL 155 |
| Minimum permissible flow medium temperature [°C] | -40 |
| Maximum permissible flow medium temperature [°C] | 60 |
| Electrical connection | Junction box |
| Sound pressure level LpA or LwA [dB(A)] | 75-86 |
| Number of wings | 7 |
| Rotor | Aluminium, non-lacquered |
| Wall ring plate | Wall ring, steel, powder-coated, deep black (resistance class 2) |
| Conformity | ErP 2015 |
| Weight [kg] | 35.1 |
| Airflow direction | V |
| Model | F |

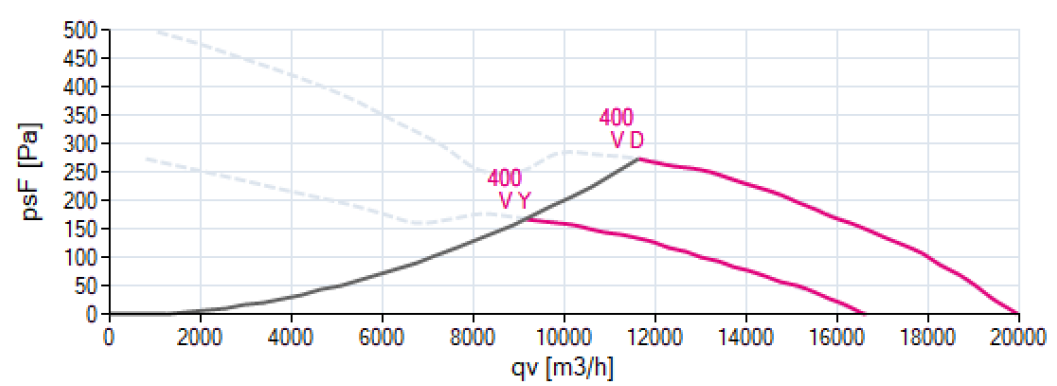

| Max. volume flow qv, (where psf = 0 Pa) [m³/h] | 20000 |
| Max. pressure psf [Pa] | 270 |
| Max. volume flow qv [m³/h] (at max. psf [Pa]) | 11600 |
 | |
| Performance data | Effizienzgrad: Nist = 40.2 |
