MatchcodeZN091-ADL.6N.V7P2Item number ZV-174356 |  |
|---|---|
| Product group | Axial fan |
| Model | Standard |
| Design | |
| Name | ZAplus |
| Blade series | FN |
| Fan series match code | ZN091-__L.6_.V7P2 |
| Blade diameter [cm] | 91 |
| Motor technology | AC |
| Rated voltage UN [V] UN [V] | 3~400/460 +/-10% |
| Rated frequency fN [Hz] | 50/60 |
| Input power P1 [kW] | 1,3 |
| Rated current IN [A] | 0.88/0.50 / 1.15/0.52 / 1.3/0.66 |
| Rated speed nN [min-1] | 2,0/1,05 / 2,3/1,1 / 2,4/1,2 |
| Current rating increase Δ I [%] | 650/480 / 670/440 / 730/500 |
| Controlling starting current IA [A] | |
| Operating capacitor C400V [µF] | |
| Thermal class | THCL 155 |
| Minimum permissible flow medium temperature [°C] | -25 |
| Maximum permissible flow medium temperature [°C] | 80 |
| Electrical connection | Junction box |
| Sound pressure level LpA or LwA [dB(A)] | 62,5-83 |
| Number of wings | 7 |
| Rotor | Aluminium, non-lacquered |
| Wall ring plate | Plastic housing |
| Conformity | ErP 2015 |
| Weight [kg] | 40.4 |
| Airflow direction | V |
| Model | L |
| Max. volume flow qv, (where psf = 0 Pa) [m³/h] | 20500 |
| Max. pressure psf [Pa] | 120 |
| Max. volume flow qv [m³/h] (at max. psf [Pa]) | 8000 |
 | |

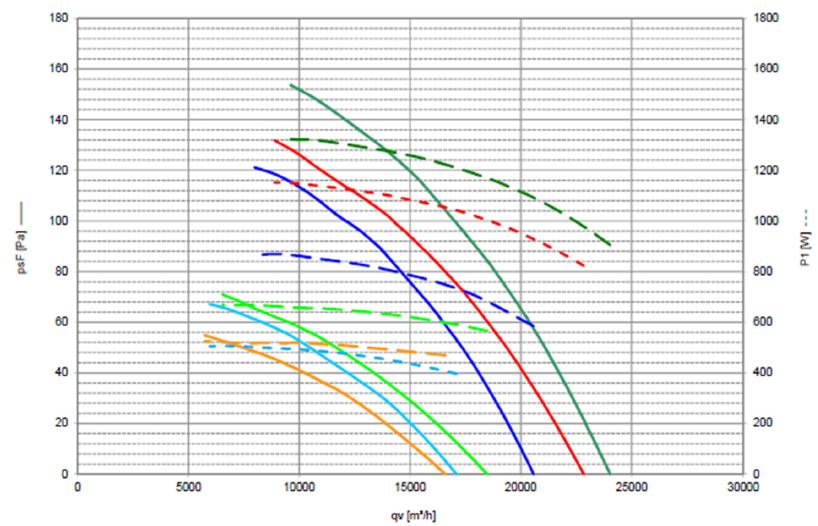

| Performance data | Effizienzgrad: Nist = 49,7 |
