MatchcodeZN091-SDL.7M.V5P1Item number ZV-174357 |  |
|---|---|
| Product group | Axial fan |
| Model | Standard |
| Design | |
| Name | ZAplus |
| Blade series | FN |
| Fan series match code | ZN091-_DL.7_V5P1 |
| Blade diameter [cm] | 91 |
| Motor technology | AC |
| Rated voltage UN [V] UN [V] | 3~400/460 +/-10% |
| Rated frequency fN [Hz] | 50/60 |
| Input power P1 [kW] | 3 |
| Rated current IN [A] | 1.95/1.3 / 2.8/1.65 / 3.0/1.95 |
| Rated speed nN [min-1] | 4,2/2,3 / 4,8/2,8 / 5,0/2,9 |
| Current rating increase Δ I [%] | 890/730 / 980/720 / 1030/800 |
| Controlling starting current IA [A] | |
| Operating capacitor C400V [µF] | |
| Thermal class | THCL 155 |
| Minimum permissible flow medium temperature [°C] | -25 |
| Maximum permissible flow medium temperature [°C] | 80 |
| Electrical connection | Junction box |
| Sound pressure level LpA or LwA [dB(A)] | 74-87 |
| Number of wings | 5 |
| Rotor | Aluminium, non-lacquered |
| Wall ring plate | Plastic housing |
| Conformity | ErP 2015 |
| Weight [kg] | 50.4 |
| Airflow direction | V |
| Model | L |

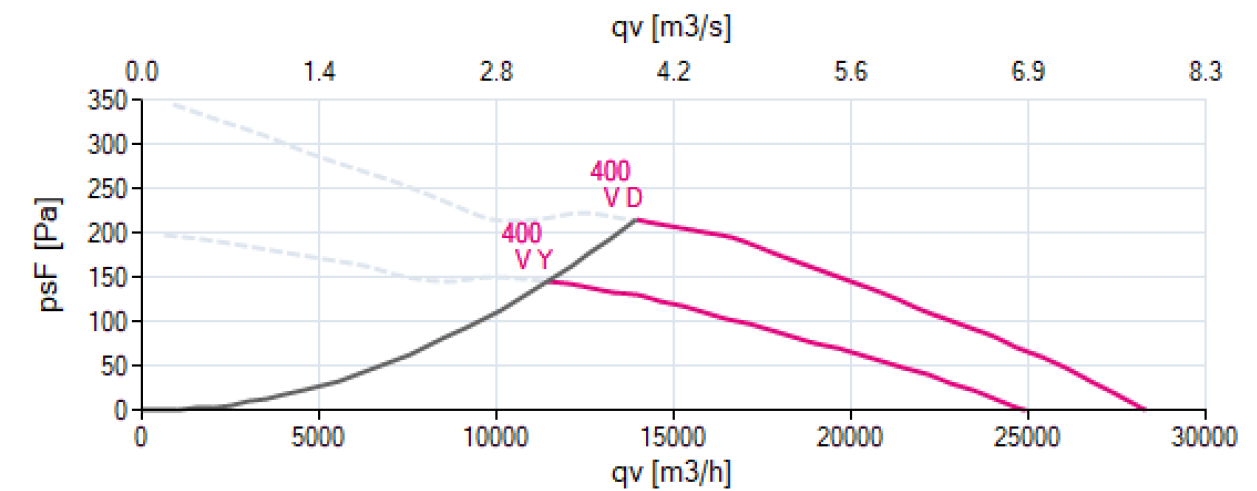

| Max. volume flow qv, (where psf = 0 Pa) [m³/h] | 28000 |
| Max. pressure psf [Pa] | 210 |
| Max. volume flow qv [m³/h] (at max. psf [Pa]) | 13500 |
 | |
| Performance data | Effizienzgrad: Nist = 53,9 |
