MatchcodeFC080-VDQ.7Q.V4Item number ZV-152886 |  |
|---|---|
| Product group | Axial fan |
| Model | Standard |
| Design | |
| Name | |
| Blade series | FC |
| Fan series match code | FC080-VDQ.7Q.V4 |
| Blade diameter [cm] | 80 |
| Motor technology | AC |
| Rated voltage UN [V] UN [V] | 3~400 +/-10% |
| Rated frequency fN [Hz] | 50 |
| Input power P1 [kW] | 5,2 |
| Rated current IN [A] | 8,6 |
| Rated speed nN [min-1] | 1250 |
| Current rating increase Δ I [%] | |
| Controlling starting current IA [A] | |
| Operating capacitor C400V [µF] | |
| Thermal class | THCL 155 |
| Minimum permissible flow medium temperature [°C] | |
| Maximum permissible flow medium temperature [°C] | 65 |
| Electrical connection | To be operated only with a frequency converter! |
| Sound pressure level LpA or LwA [dB(A)] | 93 |
| Number of wings | 4 |
| Rotor | 1-coat lacquer, black |
| Wall ring plate | Sheet of metal |
| Conformity | ErP 2013 |
| Weight [kg] | 62 |

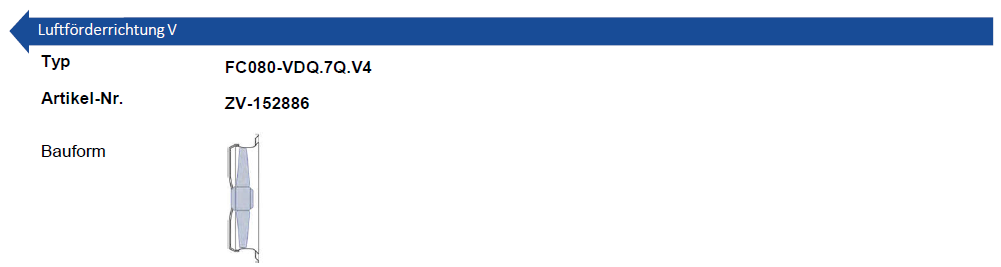

| Airflow direction | V |
| Model | Q |

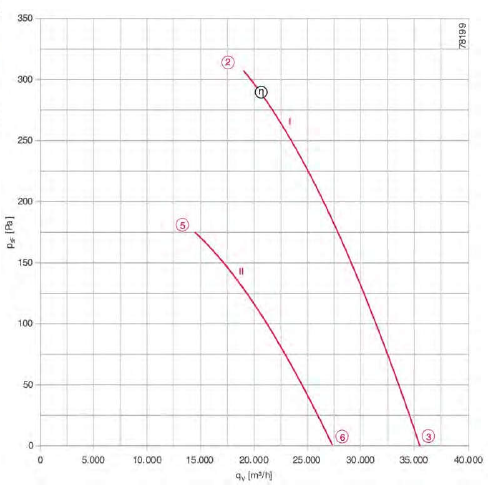

| Max. volume flow qv, (where psf = 0 Pa) [m³/h] | 36500 |
| Max. pressure psf [Pa] | 310 |
| Max. volume flow qv [m³/h] (at max. psf [Pa]) | 19000 |
 | |
