MatchcodeFN091-SDS.6N.V7P2Item number ZV-156205 |  |
|---|---|
| Product group | Axial fan |
| Model | Standard |
| Design | |
| Name | |
| Blade series | FN |
| Fan series match code | FN091-SDS.6N.V7P2 |
| Blade diameter [cm] | 91 |
| Motor technology | AC |
| Rated voltage UN [V] UN [V] | 3~400 +/-10% |
| Rated frequency fN [Hz] | 50 |

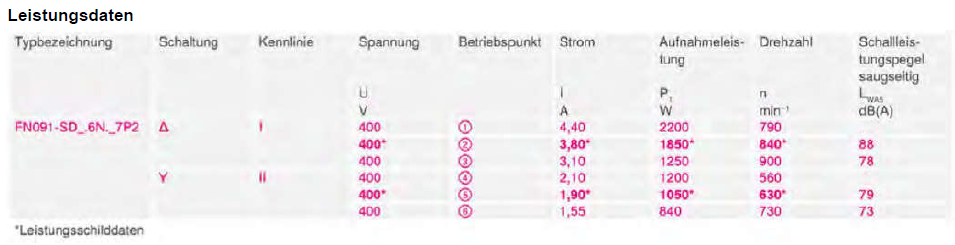

| Input power P1 [kW] | 1,85 |
| Rated current IN [A] | 3,8 |
| Rated speed nN [min-1] | 840 |
| Current rating increase Δ I [%] | |
| Controlling starting current IA [A] | |
| Operating capacitor C400V [µF] | |
| Thermal class | THCL 155 |
| Minimum permissible flow medium temperature [°C] | |
| Maximum permissible flow medium temperature [°C] | 70 |
| Electrical connection | |
| Sound pressure level LpA or LwA [dB(A)] | 88 |
| Number of wings | 7 |
| Rotor | Aluminium, non-lacquered |
| Wall ring plate | Sheet of metal |
| Conformity | ErP 2015 |
| Weight [kg] | 34 |

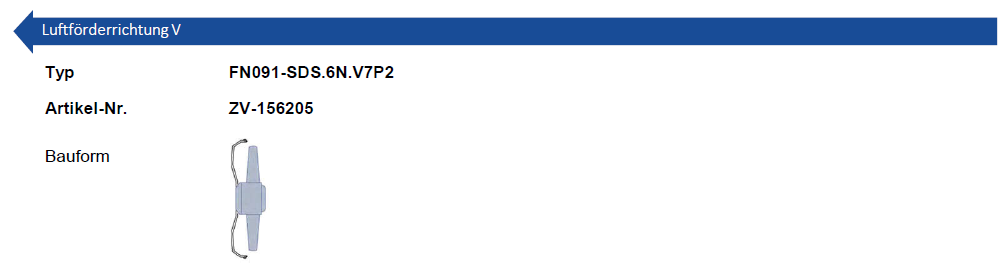

| Airflow direction | V |
| Model | S |

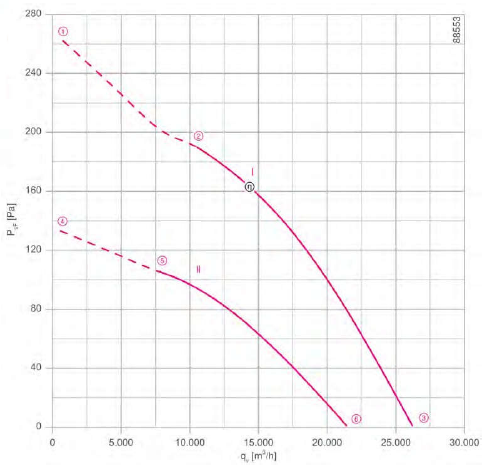

| Max. volume flow qv, (where psf = 0 Pa) [m³/h] | 26500 |
| Max. pressure psf [Pa] | 185 |
| Max. volume flow qv [m³/h] (at max. psf [Pa]) | 10000 |
 | |
