Bypass switchMatch codeBypass-Schalter S-D-16 A Türeinbau, F 105/1450.1550-SO41-GSWItem number MZ-0567153140 |  |
|---|---|
| Application | Control unit/controller SD |
| Features | Equipment/features:
• Power supply frequency inverter / control unit On / Off • Bypassing the frequency inverter / control unit (bypass) The control unit is de-energised. • The device has 3 switch positions 100 % • 0 – Auto • Rated current 3 • 400 V / 10 A or 1 • 230 V/ 16 A • Switch position 0 can be locked with a padlock |
| Functional principle | Door-mounted bypass switch for 1 ~ and 3~ phase connection |

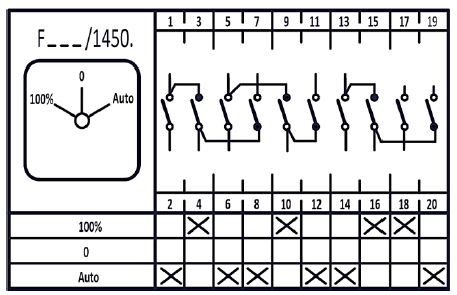

| Functional description | Special switch 100 % - 0 - Auto |
| Technical data | Bemessungsdauerstrom Ith 25 A Bemessungsbetriebsstrom Ie 25 A Bemessungsbetriebsspannung Ue 690V Schaltvermögen AC-23A 400V 7,5 kW Schaltvermögen AC-3 400V 5,5 kW Trenneigenschaft bis 500 Volt ~ Einphasenmotor 230V 2,2 kW Einphasenmotor 400V 3 kW Schutzart IP55 |
| Size (R = for pipe installation) / dimensions | |
| Series | |
| Motor size | |
 | |
